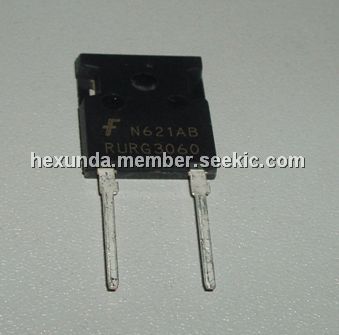

Product Summary

The RURG3060 is an ultrafast diode with soft recovery characteristics (trr<55ns) . The The RURG3060 has low forward voltage drop and is silicon nitride passivated ion-implanted epitaxial planar construction. Appications of the RURG3060 include: switching power supplies, powr swithcing circuits and general purspose.

Parametrics

RURG3060 absolute maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM: 600V; (2) Working Peak Reverse Voltage VRWM: 600V; (3) DC Blocking Voltage VR: 600V; (4) Average Rectified Forward Current (TC = 130°C) , IF(AV) : 30A; (5) Repetitive Peak Surge Current (Square Wave, 20kHz), IFRM: 70A; (6) Nonrepetitive Peak Surge Current (Halfwave, 1 Phase, 60Hz) , IFSM: 325A; (7) Maximum Power Dissipation PD: 125W; (8) Avalanche Energy EAVL: 20mJ; (9) Operating and Storage Temperature TSTG, TJ: -65 to 175°C.

Features

RURG3060 features: (1) Ultrafast with Soft Recovery: <55ns; (2) Operating Temperature: 175°C; (3) Reverse Voltage: 600V; (4) Avalanche Energy Rated; (5) Planar Construction.

Diagrams

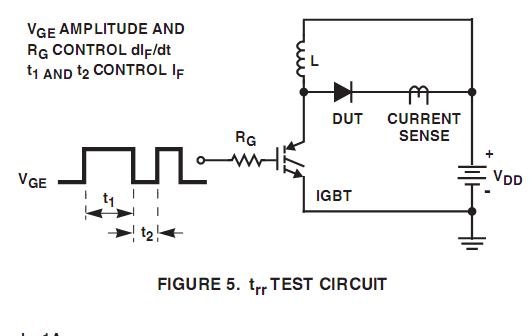

RURG3060 Circuit
