Product Summary

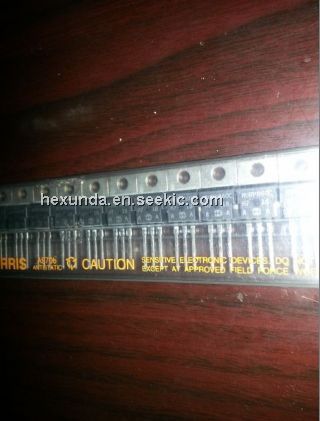

8A, 400V - 600V Ultrafast Dual Diodes
The RURP840CC and RURP860CC are ultrafast dual
diodes with soft recovery characteristics (trr < 60ns). They
have low forward voltage drop and are silicon nitride
passivated ion-implanted epitaxial planar construction.
These devices are intended for use as
freewheeling/clamping diodes and rectifiers in a variety of
switching power supplies and other power switching
applications. Their low stored charge and ultrafast soft
recovery minimize ringing and electrical noise in many
power switching circuits reducing power loss in the switching
transistors.
Formerly developmental type TA09616
Parametrics
Absolute Maximum Ratings (Per Leg) TC = 25℃, Unless Otherwise Specified
Peak Repetitive Reverse Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VRRM 400 600 V
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VRWM 400 600 V
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VR 400 600 V
Average Rectified Forward Current (TC = 155℃). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IF(AV) 8 8 A
Repetitive Peak Surge Current (Square Wave, 20kHz). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IFRM 16 16 A
Nonrepetitive Peak Surge Current (Halfwave, 1 phase, 60Hz). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IFSM 100 100 A
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .PD 75 75 W
Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EAVL 20 20 mJ
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TSTG, TJ -65 to 175 -65 to 175℃
Features
Features
? Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . . . . <60ns
? Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175℃
? Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600V
? Avalanche Energy Rated
? Planar Construction
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RURP860CC |
Fairchild Semiconductor |
Rectifiers 8A 600V |
Data Sheet |
Negotiable |
|
|||||||||||||
