Product Summary
The SAA7114H/V2 is a video decoder with adaptive PAL/NTSC comb filter, VBI data slicer and high performance scaler. It is a combination of a two-channel analog preprocessing circuit including source selection, anti-aliasing filter and Analog-to-Digital Converter (ADC), an automatic clamp and gain control, a Clock Generation Circuit (CGC), a digital multistandard decoder containing two-dimensional chrominance/luminance separation.
Parametrics
SAA7114H/V2 absolute maximum ratings: (1)digital supply voltage: -0.5 to 4.6V; (2)analog supply voltage: -0.5 to 4.6V; (3)input voltage at digital inputs: 4.6V; (4)voltage difference between VSSA and VSSD: 100mV; (5)storage temperature: -65 to 150℃; (6)ambient temperature: 0 to 70℃.
Features
SAA7114H/V2 features: (1)Automatic Clamp Control (ACC) for CVBS, Y and C; (2)Switchable white peak control; (3)Two 9-bit video CMOS ADCs, digitized CVBS or Y/C signals are available on the expansion port; (4)On-chip line-locked clock generation in accordance with "ITU 601"; (5)Digital Phase-Locked Loop (PLL) for synchronization and clock generation from all standards and non-standard video sources e.g. consumer grade VTR.

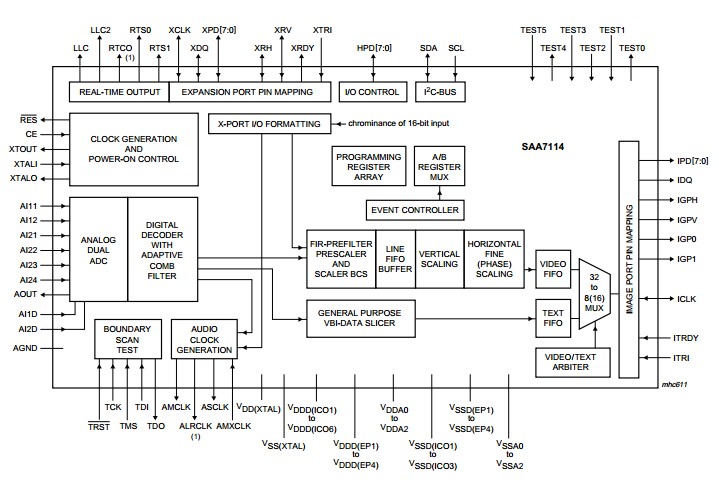

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAA7114H/V2,518 |
NXP Semiconductors |
Video ICs DIGITAL VIDEO DECODER W/COMB F |
Data Sheet |
Negotiable |
|
||||
|
SAA7114H/V2,557 |
NXP Semiconductors |
Video ICs DECODR W/FILTR |
Data Sheet |
Negotiable |
|
||||
