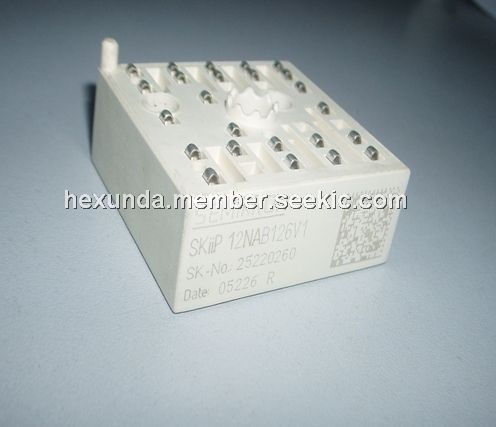

Product Summary
The SKIIP12NAB126V1 is a 3-phase bridge rectifier + brake chopper + 3-phase bridge inverter. Applications of the SKIIP12NAB126V1 include: inverter up to 10kVA and typical motor power 5.5kW.
Parametrics
SKIIP12NAB126V1 absolute maximum ratings: (1) IGBT-Inverter,Chopper: (a) VCES: 1200V; (b) IC: 28 (22) A (Ts=25 (70) °C; (c) ICRM: 30A (tp≤1ms) ; (d) VGES: ±20V; (e) Tj: -40°C to +150°C; (2) Diode-Inverter,Chopper: (a) IF: 26(20) A; (b) IFRM: 30A (tp≤1ms) ; (c) Tj: -40°C to +150°C; (3) Diode-Rectifier/: (a) VRM: 1600V (Ts=70°C) ; (b) IF: 35A (Ts=70°C) ; (c) IFSM: 220A ( tp=10ms, sin 180°, Tj=25°C) ; (d) Tj: -40°C to +150°C; (e) ItRMS: 20A ( per power terminal) ; (f) Tstg: -40°C to +125°C) ; (g) Visol: 2500V ( AC, 1 min) .
Features
SKIIP12NAB126V1 features:(1) Fast Trench IGBTs ; (2) Robust and soft freewheeling diodes in CAL rechnology; (3) Highly reliable spring contacys for electrical connections ; (4) UL recognised file no.E63532.

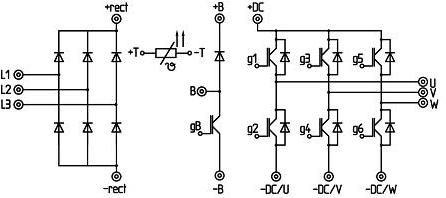

Diagrams
