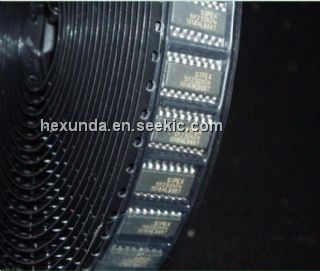

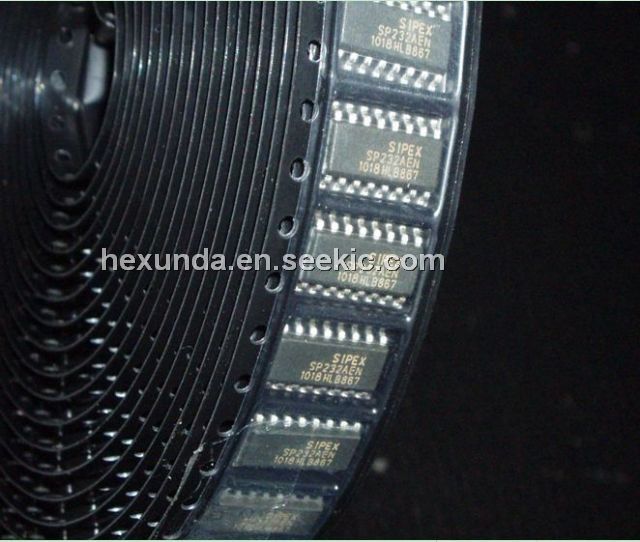

Product Summary
The SP232AEN is an enhanced R-232 line driver/receiver. The SP232AEN is pin-for-pin replacements for these earlier version and will opertes in its socket. The SP232AEN is available in plastic and ceramic DIP and SOIC packages operating over the commercial, industrial and military temperature ranges.
Parametrics
SP232AEN absolute maximum ratings: (1) Vcc: +6V; (2) V+: (VCC -0.3V) to +13.2V; (3) V-: 13.2V; (4) Input Voltage: -0.3V to (Vcc +0.3V); (5) RIN: ±30V; (6) Output Voltages TOUT: (V+, +3V) to (V-, -0.3V) ; (7) Short Circuit Duration: Continuous; (8) Power Dissipation CERDIP: 675mW.
Features
SP232AEN features: (1) Operates from Single 5V Power Supply; (2) Meets All RS-232D and V.28 Specifications; (3) Multiple Drivers and Receivers; (4) Operates with 0.1μF and 100μF Capacitors; (5) High Data Rate (R)C 120kbps Under Load; (6) Low Power CMOS -15mA Operation; (7) 3-State TTL/CMOS Receiver Outputs; (8) ±30V Receiver Input Levels.

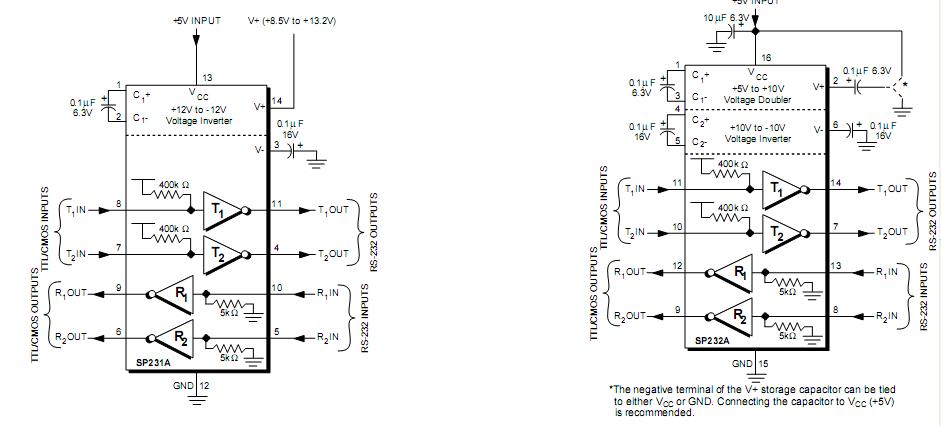

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP232AEN-L |
Exar |
RS-232 Interface IC RS232 ESD 2KV temp -40C to 85C |
Data Sheet |
|
|
|||||||||||||
SP232AEN-L/TR |
Exar |
Universal Bus Functions 5V SNGL SUPPLY RS-232 -40-85C |
Data Sheet |
|
|
