Product Summary

DESCRIPTION:The SP481, SP483, and the SP485 are a family of half-duplex transceivers that meet therequirements of RS-485 and RS-422.  Their BiCMOS design allows low power operation
without sacrificing performance.  The SP481 and SP485 meet the requirements of RS-485 and RS-422 up to 5Mbps.  Additionally, the SP481 is equipped with a low power Shutdown
mode.   The SP483 is internally slew rate limited to reduce EMI and can meet the requirements of RS-485 and RS-422 up to 250kbps.  The SP483 is also equipped with a low power
Shutdown mode.

Parametrics

ABSOLUTE MAXIMUM RATING
VCC............................................................................................................±12V
Input Voltages Logic........................................................-0.3V to (VCC+0.5V)
Input Voltages Drivers..................................................-0.3V to (VCC+0.5V)
Input Voltages Receivers................................................................. ±15V
Output Voltages Logic........................................................-0.3V to (VCC+0.5V)
Output Voltages Drivers...................................................................... ±15V
Output Voltages Receivers............................................-0.3V to (VCC+0.5V)
Storage Temperature.......................................................-65℃ to +150℃
Power Dissipation...........................................................................500mW

Features

Features

(1) +5V Only;

(2) Low Power BiCMOS;
(3) Driver/Receiver Enable;
(4) Slew Rate Limited Driver forLow EMI (SP483);
(5) Low Power Shutdown Mode (SP481and SP483);
(6) RS-485 and RS-422 Drivers/Receivers

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

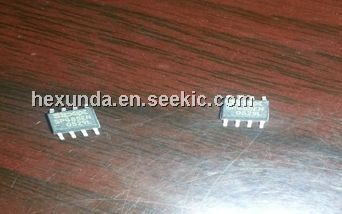

SP485EN-L
SP485EN-L
Exar
RS-485 Interface IC RS485 5000 kbps temp -40C to 85C
Data Sheet
0-1: $0.68
1-25: $0.54
25-100: $0.47
100-250: $0.40
SP485EN-L/TR
SP485EN-L/TR
Exar
RS-485 Interface IC Low Pwr Half-Duplex RS-485
Data Sheet
0-1850: $0.25
1850-2500: $0.23
