Product Summary
The SS3H10-E3 is a high voltage surface mount schottky barrier rectifier. Plastic package of the SS3H10-E3 has Underwriters Laboratory Flammability Classification 94V-0.
Parametrics
SS3H10-E3 maximum ratings: (1) Device marking code MS9 MS10; (2) Maximum repetitive peak reverse voltage VRRM:90 to 100V; (3) Working peak reverse voltage VRWM: 90 to 100 V; (4) Maximum DC blocking voltage VDC: 90 to 100 V; (5) Maximum average forward rectified current at TL = 115°C IF(AV) : 3.0A; (6) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM: 100A; (7) Peak repetitive reverse surge current at tp=2.0μs, 1kHz IRRM: 1.0A; (8) Critical rate of rise of reverse voltage dv/dt: 10,000 V/μs; (9) Typical thermal resistance junction to lead TL=25°C RθJL: 9.7°C/W, junction to ambient, RθJA: 32°C/W; (10) Operating junction and storage temperature range TJ, TSTG: -65 to +175°C .
Features
SS3H10-E3 features: (1) Plastic package has Underwriters Laboratory, Flammability Classification 94V-0; (2) Low profile surface mount package; (3) Built-in strain relief; (4) Low power loss, high efficiency; (5) For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (6) Guardring for overvoltage protection; (7) High temperature soldering guaranteed: 250°C/10 seconds at terminals.

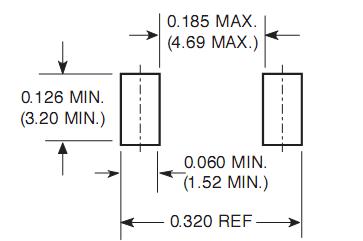

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

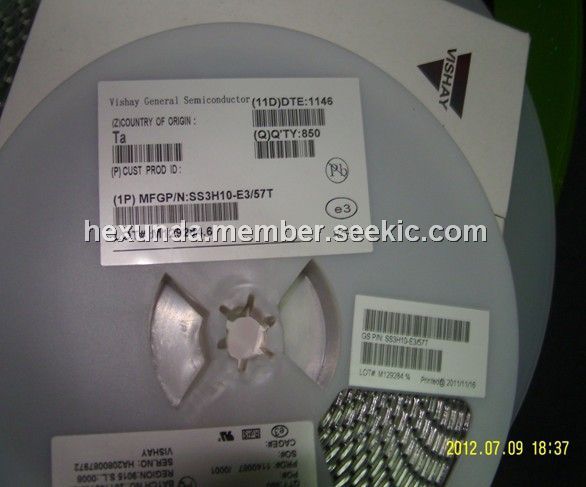

 SS3H10-E3/57T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 3.0 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
|
SS3H10-E3/59T |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
SS3H10-E3/9AT |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
|
|
||||||||||||
|
SS3H10-E3/9CT |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 3.0 Amp 100 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
