Product Summary

The STM32F103VBT7TR performance line family incorporates the high-performance ARM COrtex-M3 32-bit RISC core operating at a 72MHz frequency, high-speed embedded memories (Flash memory up to 128Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103VBT7TR medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins. Applications of the STM32F103VBT7TR include: Motor drive and application control, Medical and handheld equipment, PC peripherals gaming and GPS platforms, Industrial applications: PLC, inverters, printers, and scanners and Alarm systems, Video intercom, and HVAC.

Parametrics

STM32F103VBT7TR absolute maximum ratings: (1) Total current into VDD /V DDApower lines (source) IVDD: 150V; (2) Total current out of V SSground lines (sink) IVSS: 150V; (3) Output current sunk by any I/O and control pin IIO: 25mA; (4) Output current source by any I/Os and control pin IIO: -25mA; (5) Injected current on HSE OSC_IN and LSE OSC_IN pins INJ(PIN) : ±5mA.

Features

STM32F103VBT7TR features: (1) CSingle-cycle multiplication and hardware ddivision; (2) C64 or 128 Kbytes of Flash memory; (3) C7-channel DMA controller; (4) CSerial wire debug (SWD) & JTAG interface; (5) CSysTick timer: a 24-bit downcounte; (6) CRC calculation unit, 96-bit unique ID. features: (1) CSingle-cycle multiplication and hardware ddivision; (2) C64 or 128 Kbytes of Flash memory; (3) C7-channel DMA controller; (4) CSerial wire debug (SWD) & JTAG interface; (5) CSysTick timer: a 24-bit downcounte; (6) CRC calculation unit, 96-bit unique ID.

Diagrams

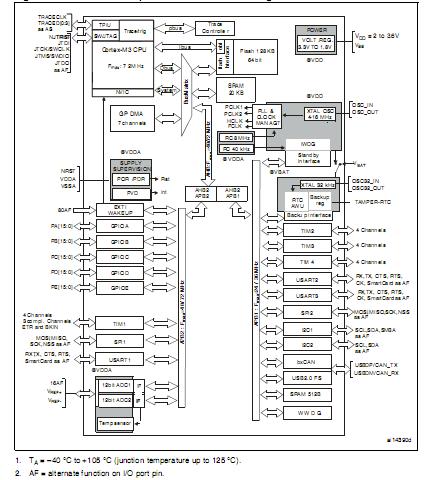

STM32F103VBT7TR Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STM32F103VBT7TR
STM32F103VBT7TR
STMicroelectronics
ARM Microcontrollers (MCU) 32-Bit ARM Cortex MED Density 128kb PL
Data Sheet
0-696: $3.16
696-1000: $2.89
1000-2000: $2.80
