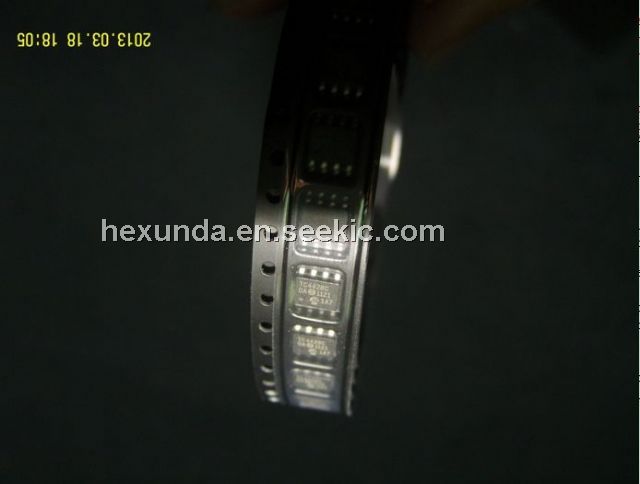

TC4428COA

Product Summary

General Description:The TC4426A/TC4427A/TC4428A are improved versions of the earlier TC4426/TC4427/TC4428 family
of MOSFET drivers. In addition to matched rise and fall times, the TC4426A/TC4427A/TC4428A devices have matched leading and falling edge propagation delay times.These devices are highly latch-up resistant under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise
spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 4 kV.
The TC4426A/TC4427A/TC4428A MOSFET drivers can easily charge/discharge 1000 pF gate capacitances in under 30 ns. These devices provide
low enough impedances in both the on and off states to ensure the MOSFET’s intended state will not be affected, even by large transients

Parametrics

Absolute Maximum Ratings?
Supply Voltage .....................................................+22V
Input Voltage, IN A or IN B..................... (VDD + 0.3V) to (GND – 5V)
Package Power Dissipation (TA ≤ 70°C)
DFN .............................................................. Note 2
MSOP..........................................................340 mW
PDIP ............................................................730 mW
SOIC............................................................470 mW

Features

Features:
? High Peak Output Current – 1.5A
? Wide Input Supply Voltage Operating Range:
- 4.5V to 18V
? High Capacitive Load Drive Capability – 1000 pF in 25 ns (typ.)
? Short Delay Times – 30 ns (typ.)
? Matched Rise, Fall and Delay Times
? Low Supply Current:
- With Logic ‘1’ Input – 1 mA (typ.)
- With Logic ‘0’ Input – 100 μA (typ.)
? Low Output Impedance – 7Ω (typ.)
? Latch-Up Protected: Will Withstand 0.5A Reverse Current
? Input Will Withstand Negative Inputs Up to 5V
? ESD Protected – 4 kV
? Pin-compatible with TC426/TC427/TC428 and TC4426/TC4427/TC4428
