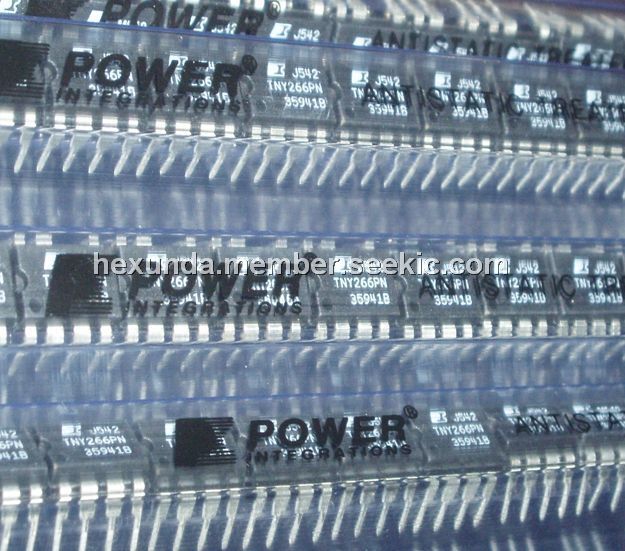

TNY266PN

low power off-line switcher, low power off-line switcher, 700V, 560mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.26~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.26~0.32

PartNumber:: TNY266PN

Brand:: Power Integrations, Inc. - Power | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Chaney's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-09

From Other Seller

Part Number:TNY266PN
US $0.26 - 0.32
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

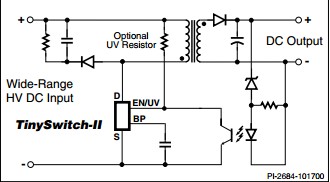

The TNY266PN integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The NY266PN incorporates auto-restart, line under-voltage sense, and frequency jittering. The operating frequency of 132kHz of the NY266PN is jittered to significantly reduce both the quasi-peak and average EMI, minimizing filtering cost.

Parametrics

TNY266PN absolute maximum ratings: (1) DRAIN Voltage: -0.3V to 700V; (2) DRAIN Peak Current: 560mA; (3) EN/UV Voltage: -0.3V to 9V; (4) EN/UV Current: 100mA; (5) BYPASS Voltage: -0.3V t0 9V; (6) Storage Temperature: -65°C to 150°C; (7) Operating Junction Temperature: -40°C to 150°C; (8) Lead Temperature: 260°C.

Features

TNY266PN features: (1) Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs; (2) Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer; (3) Programmable line under-voltage detect feature prevents power on/off glitches – saves external components; (4) Frequency jittering dramatically reduces EMI (~10 dB) minimizes EMI ﬁlter component costs; (5) 132 kHz operation reduces transformer size – allows use of EF12.6 or EE13 cores for low cost and small size; (6) Very tight tolerances and negligible temperature variation on key parameters eases design and lowers cost; (7) Lowest component count switcher solution; (8) High Performance at Low Cost.
