Product Summary

 DESCRIPTION: The TPS7A30xx series of devices are negative, high-voltage (–36V), ultralow-noise (15.1mVRMS, 72dB PSRR) linear regulators capable of sourcing a maximum load of 200mA.These linear regulators include a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power-management schemes. Other features available include built-in current limit and thermal shutdown protection to safeguard the device  and system during fault conditions.

Parametrics

ABSOLUTE MAXIMUM RATINGS(1)
Voltage IN pin to GND pin –36 +0.3 V
Voltage OUT pin to GND pin –33 +0.3 V
Voltage OUT pin to IN pin –0.3 +36 V
Voltage FB pin to GND pin –2 +0.3 V
Voltage FB pin to IN pin –0.3 +36 V
Voltage EN pin to IN pin –0.3 +36 V
Voltage EN pin to GND pin –36 +36 V
Voltage NR/SS pin to IN pin –0.3 +36 V
Voltage NR/SS pin to GND pin –2 +0.3 V
Current Peak output Internally limited
Temperature Operating virtual junction, TJ –40 +125 °C
Temperature Storage, Tstg –65 +150 °C
Electrostatic discharge rating Human body model (HBM) 1500 V
Electrostatic discharge rating Charged device model (CDM) 500 V

Features

FEATURES
 Input Voltage Range: –3V to–36V
 Noise: 14mVRMS (20Hz to 20kHz), 15.1mVRMS (10Hz to 100kHz)
 Power-Supply Ripple Rejection: 72dB (120Hz), ≥ 55dB (10Hz to 700kHz)
 Adjustable Output: –1.18V to –33v
 Maximum Output Current: 200mA
 Dropout Voltage: 216mV at 100mA
 Stable with Ceramic Capacitors ≥ 2.2mF
 CMOS Logic-Level-Compatible Enable Pin
 Built-In, Fixed, Current-Limit and Thermal Shutdown Protection
 Available in High Thermal Performance MSOP-8 PowerPAD? Package
 Operating Tempature Range: –40°C to +125°C

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

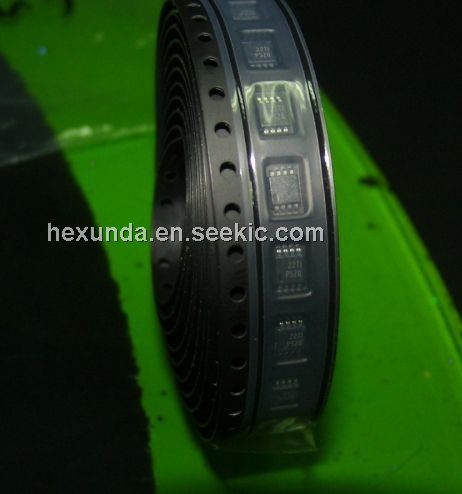

TPS7A3001DGNR
TPS7A3001DGNR
Texas Instruments
Low Dropout (LDO) Regulators -3V to -36V,-200mA High PSRR, LDO Reg
Data Sheet
0-1: $2.25
1-25: $1.84
25-100: $1.67
100-250: $1.53
