Product Summary
The XCF02SVOG20C is a platform flash in-system programmable configuration PROMS. The XCF02SVOG20C provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams. The XCF02SVOG20C version includes 4-Mbit, 2-Mbit, and 1-Mbit PROMs that support Master Serial and Slave Serial FPGA configuration modes.
Parametrics
XCF02SVOG20C absolute maximum ratings: (1) Internal supply voltage relative to GND VCCINT: -0.5V to +4.0V; (2) I/O supply voltage relative to GND VCCO: -0.5V to +4.0V; (3) JTAG I/O supply voltage relative to GND VCCJ: -0.5V to +4.0V; (4) Input voltage with respect to GND, -0.5V to +3.6V (VCCO < 2.5V), –0.5V to +5.5V (VCCO ≥ 2.5V); (5) Voltage applied to High-Z output: –0.5V to +3.6V (VCCO < 2.5V), -0.5V to +5.5V (VCCO ≥ 2.5V ) ; (6) Storage temperature (ambient) Tstg: -65°C to +150°C; (7) Junction temperature TJ: +125 °C.
Features
XCF02SVOG20C features: (1) In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2) Low-Power Advanced CMOS NOR FLASH Process; (3) Endurance of 20,000 Program/Erase Cycles; (4) Cascadable for Storing Longer or Multiple Bitstreams; (5) I/O Pins Compatible with Voltage Levels Ranging From 1.5V to 3.3V; (6) Built-in data decompressor compatible with Xilinx advanced compression technology.

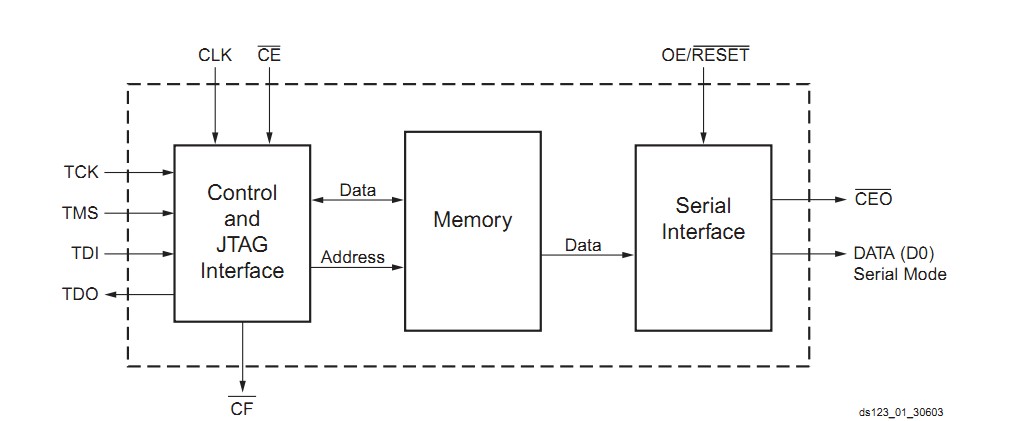

Diagrams
