Product Summary

Description:This Power MOSFET series realized with STMicroelectronics unique STripFET process has  specifically been designed to minimize input
capacitance and gate charge. It is therefore  suitable as primary switch in advanced highefficiency isolated DC-DC converters for Telecom
and Computer application. It is also intended for  any application with low gate charge drive  requirements

Parametrics

Part Specifications:
Type:Power MOSFET
Number of Elements:1
Polarity:N
Channel Mode:Enhancement
Drain-Source On-Res:0.18Ohm
Drain-Source On-Volt:120V
Gate-Source Voltage (Max):±20V
Continuous Drain Current:8.5A
Power Dissipation:25W
Operating Temp Range:-55C to 175C
Operating Temperature Classification:Military
Mounting:Through Hole
Pin Count:3 +Tab
Package Type:TO-220FP
Packaging:Rail/Tube

Features

General features:
 Exceptional dv/dt capability
 Application oriented characterization

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

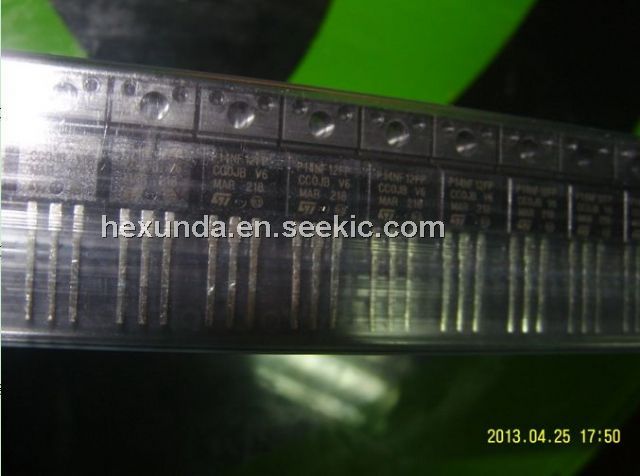

STP14NF12FP
STP14NF12FP
STMicroelectronics
MOSFET N-Ch, 120V-0.16ohms 14A
Data Sheet
0-1360: $0.39
1360-2000: $0.37
2000-5000: $0.35
