Product Summary

Description:Fifth Generation HEXFET?power MOSFETs from International Rectifier utilize advanced processing techniques
to achieve the lowest possible  on-resistance per silicon area.  This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

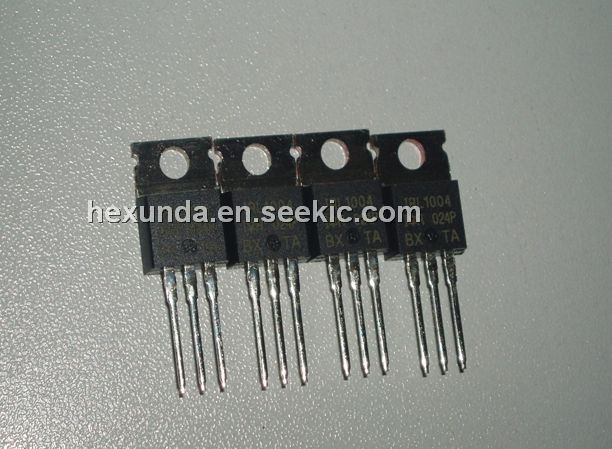

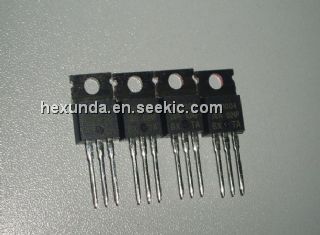

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts.  The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

Absolute Maximum Ratings:
ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 130 A
ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 92 A
IDM Pulsed Drain Current  520
PD @TC = 25°C Power Dissipation 200 W
Linear Derating Factor 1.3 W/°C
VGS Gate-to-Source Voltage ± 16 V
EAS Single Pulse Avalanche Energy 700 mJ
IAR Avalanche Current 78 A
EAR Repetitive Avalanche Energy 20 mJ
dv/dt Peak Diode Recovery dv/dt  5.0 V/ns
TJ Operating Junction and -55  to + 175
TSTG Storage Temperature Range
Soldering Temperature, for 10 seconds 300 (1.6mm from case)°C
Mounting torque, 6-32 or M3 srew 10 lbf?in (1.1N?m)

Features

Features as below :

(1) Logic-Level Gate Drive;
(2) Advanced Process Technology;
(3) Ultra Low On-Resistance;
(4) Dynamic dv/dt Rating;
(5) 175°C Operating Temperature;
(6) Fast Switching;
(7) Fully Avalanche Rated

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRL1004
IRL1004

MOSFET N-CH 40V 130A TO-220AB
Data Sheet
Negotiable
IRL1004L
IRL1004L

MOSFET N-CH 40V 130A TO-262
Data Sheet
Negotiable
IRL1004PBF
IRL1004PBF
International Rectifier
MOSFET MOSFT 130A 66.7nC 6.5mOhm LogLvAB
Data Sheet
0-1: $2.18
1-25: $1.49
25-100: $1.11
100-250: $1.06
IRL1004LPBF
IRL1004LPBF
International Rectifier
MOSFET MOSFT 40V 110A 6.5mOhm 66.7nC LogLv
Data Sheet
0-1: $1.92
1-25: $1.31
25-100: $0.98
100-250: $0.94
IRL1004SPBF
IRL1004SPBF
International Rectifier
MOSFET
Data Sheet
0-1: $1.90
1-25: $1.30
25-100: $1.06
100-250: $1.05
IRL1004S
IRL1004S

MOSFET N-CH 40V 130A D2PAK
Data Sheet
Negotiable
IRL1004STRLPBF
IRL1004STRLPBF
International Rectifier
MOSFET MOSFT 40V 110A 6.5mOhm 66.7nC LogLv
Data Sheet
0-1: $2.65
1-25: $1.81
25-100: $1.34
100-250: $1.29
IRL1004STRRPBF
IRL1004STRRPBF
International Rectifier
MOSFET
Data Sheet
0-620: $0.82
620-800: $0.82
