Product Summary

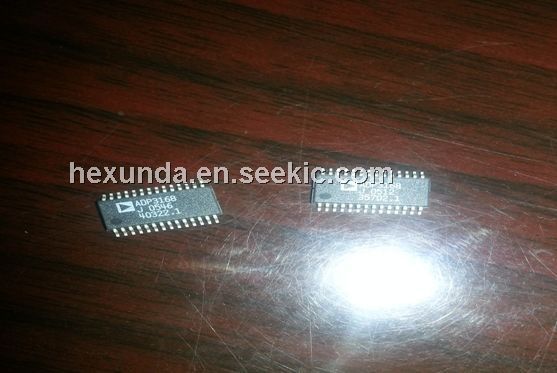

GENERAL DESCRIPTION :The ADP3168 is a highly efficient, multiphase, synchronous buck switching regulator controller optimized for converting a
12 V main supply into the core supply voltage required by high performance Intel processors. It uses an internal 6-bit DAC to
read a voltage identification (VID) code directly from the processor, which is used to set the output voltage between 0.8375 V and 1.6 V, and uses a multimode PWM architecture to
drive the logic-level outputs at a programmable switching frequency that can be optimized for VR size and efficiency. The phase relationship of the output signals can be programmed to
provide 2-, 3-, or 4-phase operation, allowing for the construction of up to four complementary buck switching stages. The ADP3168 also includes programmable no-load offset and
slope functions to adjust the output voltage as a function of the load current so that it is always optimally positioned for a system transient. The ADP3168 also provides accurate and
reliable short-circuit protection, adjustable current limiting, and a delayed Power Good output that accommodates on-the-fly
output voltage changes requested by the CPU.The device is specified over the commercial temperature range of 0°C to 85°C and is available in a 28-lead TSSOP package
Parametrics
ABSOLUTE MAXIMUM RATING
VCC :-0.3 V to +15 V
FBRTN :-0.3 V to +0.3 V
VID0 to VID5, EN, DELAY, ILIMIT, CSCOMP, RT, PWM1 to PWM4, COMP :-0.3 V to +5.5 V
SW1-SW4 :-5 V to +25 V
All Other Inputs and Outputs :-0.3 V to VCC + 0.3 V
Operating Ambient Temperature Range :0°C to 85°C
Operating Junction Temperature : 125°C
Storage Temperature Range :-65°C to +150°C
Junction to Air Thermal Resistance (θJA) :100°C/W
Lead Temperature (Soldering, 10 sec) : 300°C
Vapor Phase (60 sec) : 215°C
Infrared (15 sec) : 220°C
Features
FEATURES
(1)Selectable 2-, 3-, or 4-phase operation at up to 1 MHz per phase ;
(2)±10 mV worst-case differential sensing error over temperature ;
(3)Logic-level PWM outputs for interface to external high power drivers ;
(4)Active current balancing between all output phases ;
(5)Built-in Power Good/crowbar blanking supports ;
(6)On-the-fly VID code changes ;
(7)6-bit digitally programmable 0.8375 V to 1.6 V output ;
(8)Programmable short-circuit protection with programmable latch-off delay
