Product Summary

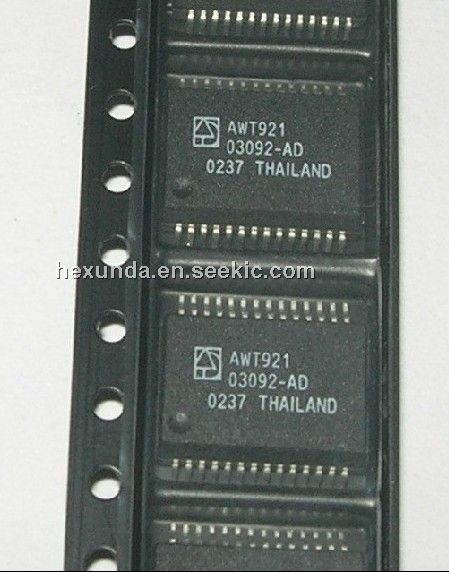

PRODUCT DESCRIPTION:The AWT921 is a monolithic amplifier for use in communication systems that require high gain and output intercept point.This device has been
specifically designed for multi-carrier and micro-cell base station applications.This device is manufactured on a high power MESFET process and has an on-chip bias circuit that does not require highly regulated positive and negative supplies to establish the proper operating point.
Parametrics
Absolute Minimum and Maximum Ratings:
VDD 0 ~ +7VDC
RFIN 0 ~ +20 dBm
1st Stage Supply (VD1) 0 ~ + 10 VDC
2nd Stage Supply (VD2) 0 ~ + 10 VDC
3rd Stage Voltage (VD3) 0 ~ + 10 VDC
Negative Supply (VSS) -7 ~ + 0 VDC
Reference Voltage (VREF) 0 ~ +7 VDC
Storage Temperature - 55 ~ + 100 ° C
Operating Temperature - 30 ~ +85 ° C
Features
FEATURES
(1) High Power Levels;
(2) High Efficiency;
(3) True Surface Mount Package With Integrated Heat Slug;
(4) Internal Bias Circuit Requiring Nominal Input Voltages +10%;
(5) Low Cost;
(6) Off Chip Output Matching Circuit Allows Application Optimization
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AWT921S11 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AWT921 |
Other |
|
Data Sheet |
Negotiable |
|
||||
