Product Summary
The BU2725DX is a silicon diffused power transistor. The BU2725DX is in a plastic full-pack envelope intended for use in horizontal deflection circuits of colour television receivers. The BU2725DX is designed to withstand VCES pulses up to 1700V.
Parametrics
BU2725DX absolute maximum ratings: (1) Collector-emitter voltage peak value VBE= 0V: 1700V; (2) Collector current (DC) : 12A; (3) Collector current peak value : 30A; (4) Total power dissipation Ths≤ 25°C: 45W; (5) Base current peak value IBM: 20A; (6) Reverse base current -IB(AV) : 200mA (average over any 20 ms period) ; (7) Storage temperature Tstg: -65 to 150°C; (8) Junction temperature Tj: 150°C.

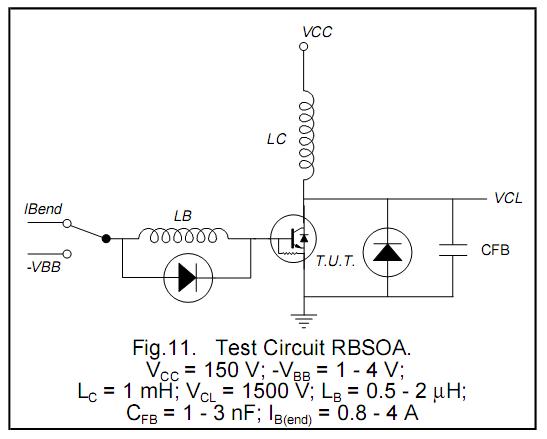

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BU2725DX |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
