IR2101

IR2101 - HIGH AND LOW SIDE DRIVER - International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.55 / Piece
10 ~ 100 :	0.50 / Piece
100 ~ 1000 :	0.45 / Piece

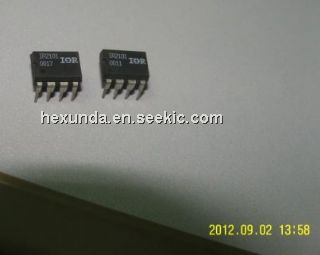

PartNumber:: IR2101

Brand:: International Rectifier - IR | Pack: DIP | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Chaney's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:IR2101
US $0.45 - 0.55
IR2101PBF

US $0.54 - 3.12 / Piece
(0) Remove
IR2101STRPBF

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

Description:The IR2101 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC
and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL outputs. The
output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel
power MOSFET or IGBT in the high side configuration which operates up to 600 volts

Parametrics

Absolute Maximum Ratings:
VB High side floating supply voltage -0.3 ~ 625V
VS High side floating supply offset voltage VB - 25 ~ VB + 0.3V
VHO High side floating output voltage VS - 0.3 ~ VB + 0.3V
VCC Low side and logic fixed supply voltage -0.3 ~ 25V
VLO Low side output voltage -0.3 ~ VCC + 0.3V
VIN Logic input voltage (HIN & LIN) -0.3 ~ VCC + 0.3V
dVS/dt Allowable offset supply voltage transient — 50 V/ns

Features

Features
(1) Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune;
(2) Gate drive supply range from 10 to 20V;
(3) Undervoltage lockout;
(4) 5V Schmitt-triggered input logic;
(5) Matched propagation delay for both channels;
(6) Outputs in phase with inputs
