Product Summary

1.esign the PCB pattern to minimize wiring length between opto-coupler and IPM input terminal, and also to minimize the stray capacity between the input and output wirings of opto-coupler.
2.onnect low impedance capacitor between the Vcc and GND terminal of each fast switching opto-coupler.
3.se 4 isolated control power supplies (VD). Also, care should be taken to minimize the instantaneous voltage charge of the power supply.
4.ake inductance of DC bus line as small as possible, and minimize surge voltage using snubber capacitor between P and N terminal.
5.ast switching opto-couplers: tPLH, tPHL 0.8s, Use High CMR type.
5.low switching opto-coupler: CTR > 100%.
6.se line noise filter capacitor (ex. 4.7nF) between each input AC line and ground to reject common-mode noise from AC line and improve noise immunity of the system.

Features

a) Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1m fine rule process.For example, typical Vce(sat)=1.9V @Tj=125C
b) I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM.

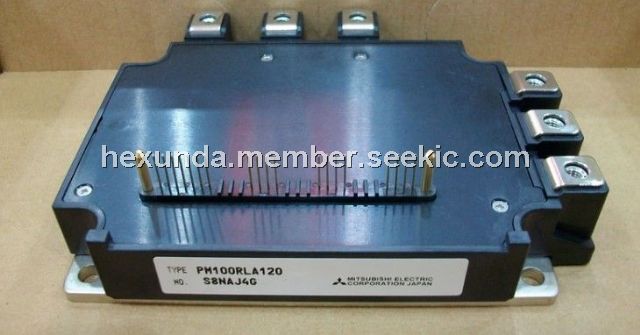

c) Current rating of brake part increased.50% for the current rating of inverter part.3 100A, 1200V Current-sense IGBT type inverter 50A, 1200V Current-sense regenerative brake IGBT ,Monolithic gate drive & protection logic,Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (P-Fo available from upper arm devices),Acoustic noise-less 18.5kW/22kW class inverter application,UL Recognized Yellow Card No.E80276(N)
