Product Summary

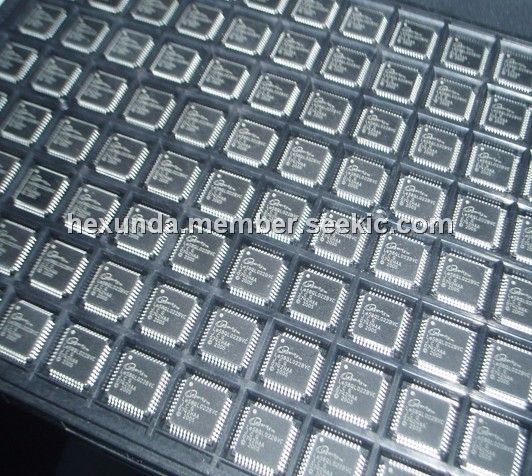

The LE58QL022BVC is a SMS mosfet. Applications of the LE58QL022BVC include: switch mode power supply ( SMPS ) ; uninterruptable power supply and high speed power switching
Parametrics
LE58QL022BVC absolute maximum ratings:(1) DC Power Supply: VDD-VSS -0.3 +6.0V; (2)Input Voltage VIN VSS -0.3 VDD +0.3V; (3) Operating Temperature TA: 0 to 60°C; (4) Storage Temperature TST: -55 to +150°C.
Features
FEATURES:(1) Fully static design 8-bit CMOS microcontroller;
(2) 32K bytes of in-system programmable MTP-ROM for Application Program (APROM);
(3) 4K bytes of auxiliary MTP-ROM for Loader Program (LDROM); (4) 512 bytes of on-chip RAM. (including 256 bytes of AUX-RAM, software selectable);
(5) 64K bytes program memory address space and 64K bytes data memory address space;
(6) Four 8-bit bi-directional ports;
(7) One 4-bit multipurpose programmable port;
(8) Three 16-bit timer/counters;
(9) One full duplex serial port;
(10) Eight-sources, two-level interrupt capability;
(11) Built-in power management;
(12) Code protection;
(13) Packaged in: DIP 40: W78LE58-24, PLCC 44: W78LE58P-24 ,QFP 44: W78LE58F-24.
