Product Summary
General Description:The LM2467 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance, wide band amplifiers
which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -20 and can drive CRT capacitive loads as well as resistive loads present in other
applications, limited only by the package’s power dissipation. The IC is packaged in an industry standard 9-lead TO-220 molded plastic power package. See Thermal Considerations section
Parametrics
Absolute Maximum Ratings (Notes 1, 3)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (VCC) +90V
Bias Voltage (VBB) +16V
Input Voltage (VIN) 0V to 4.5V
Storage Temperature Range (TSTG) -65℃ to +150℃
Lead Temperature
(Soldering, <10 sec.) 300℃
ESD Tolerance, Human Body Model 2 kV
Machine Model 250V
Features
Features
(1) Higher gain to match LM126X CMOS preamplifiers;
(2) 0V to 3.75V input range;
(3) Stable with 0–20 pF capacitive loads and inductive peaking networks;
(4) Convenient TO-220 staggered lead package style;
(5) Maintains standard LM243X Family pinout which is designed for easy PCB layout
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

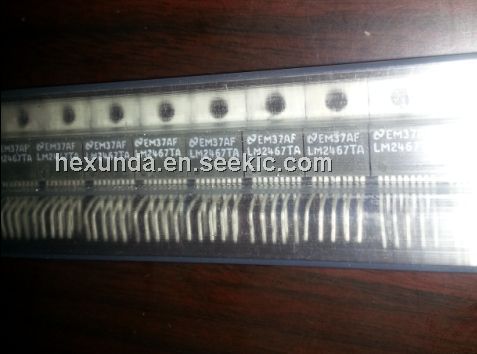

LM2467TA/NOPB |
IC MONOLITHIC TRIPLE TO-220-9 |
Data Sheet |
Negotiable |
|
||||||
