Product Summary
The M1F60 is a general is a general purpose rectifier. And the applications of the M1F60 include: Conventional Rectification, Power source (Power Supply) , Home Appliances, Office Equipment, Telecommunication and Factory Automation.
Parametrics
M1F60 absolute maximum ratings (If not specified Tl=25°C) : (1) Storage Temperature Tstg: -55~150°C, Operating Junction Temperature Tj :150°C; (2) Maximum Reverse Voltage VRM :600V; (3) Average Rectified Forward Current Io 50Hz sine wave, R-load, Ta=25°C on alumina substrate: 1.0A; (4) Average Rectified Forward Current Io 50Hz sine wave, R-load, Ta=25℃ On glass-epoxy substrate: 0.64A; (5) Peak Surge Forward Current IFSM 50Hz sine wave, Non-repetitive 1 cycle peak value, Tj=25150°C: 25A.
Features
M1F60 features: (1) High reliability with superior moisture resistance; (2) Applicable to Automatic Insertion.

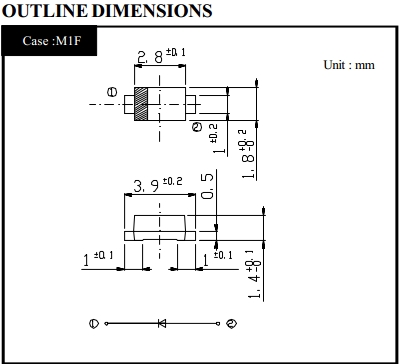

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M1F60 |
Shindengen |
Rectifiers Single Diode |
Data Sheet |
Negotiable |
|
||||||||||||
|
M1F60-4063 |
Shindengen |
Rectifiers VRM=600 IFSM=25 |
Data Sheet |
Negotiable |
|
||||||||||||
|
M1F60-5063 |
Shindengen |
Rectifiers VRM=600 IFSM=25 |
Data Sheet |
|
|
||||||||||||
