MBR0520LT1G

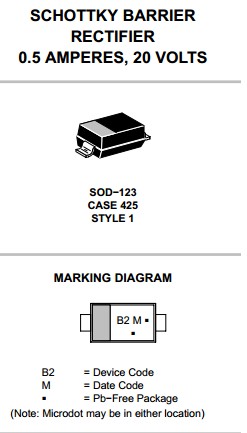

surface mount schottky power rectifier, 0.5A, 20V, SOD-123

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.01 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.01

PartNumber:: MBR0520LT1G

Brand:: ON Semiconductor - ON | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Chaney's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-23

From Other Seller

Part Number:MBR0520LT1G
US $0.01 - 0.01
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MBR0520LT1G Schottky Power Rectifier employs the Schottky Barrier principle with a barrier metal that produces optimal forward voltage drop-reverse current tradeoff. The MBR0520LT1G ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection iodes in surface mount applications where compact size and weightare critical to the system. This package of the MBR0520LT1G provides an alternative to the leadless 34 MELF style package.

Parametrics

MBR0520LT1G absolute maximum ratings :(1) Peak Repetitive Reverse Voltage, Working Peak Reverse Voltage, DC Blocking Voltage: VRRM/VRWM/VR 20 V; (2) Average Rectified Forward Current(Rated VR, TL = 90°C) : IF (AV) 0.5A ; (3) Non-Repetitive Peak Surge Current(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60Hz) : IFSM 5.5 A; (4) Storage Temperature Range Tstg: -65 to +150 °C; (5) Operating Junction Temperature TJ: -65 to +125 °C; (6) Voltage Rate of Change (Rated VR) dv/dt 1000 V/μs; (7) ESD Ratings: Machine Model =C>400V,Human Body Model=3B>8000V.

Features

MBR0520LT1G features: (1) Guardring for Stress Protection; (2) Very Low Forward Voltage (0.38V Max@0.5A, 25°C) ; (3) 125°C Operating Junction Temperature; (4) Epoxy Meets UL 94V-0@0.125 in; (5) Package Designed for Optimal Automated Board Assembly; (6) Pb-Free Packages are Available.
