Product Summary
The MSP430F1121AIDWR is a mixed signal microcontroller. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6s.
Parametrics
MSP430F1121AIDWR absolute maximum ratings: (1)voltage applied at VCC to VSS: -0.3 to 4.1V; (2)voltage applied to any pin: -0.3 to VCC+0.3V; (3)Diode current at any device terminal: ±2mA; (4)storage temperature: -55 to 150℃.
Features
MSP430F1121AIDWR features: (1)Low Supply Voltage Range 1.8V to 3.6V; (2)Ultralow-Power Consumption; (3)Wake-Up From Standby Mode in less than 6 µs; (4)16-Bit RISC Architecture, 125 ns Instruction Cycle Time; (5)Basic Clock Module Configurations.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

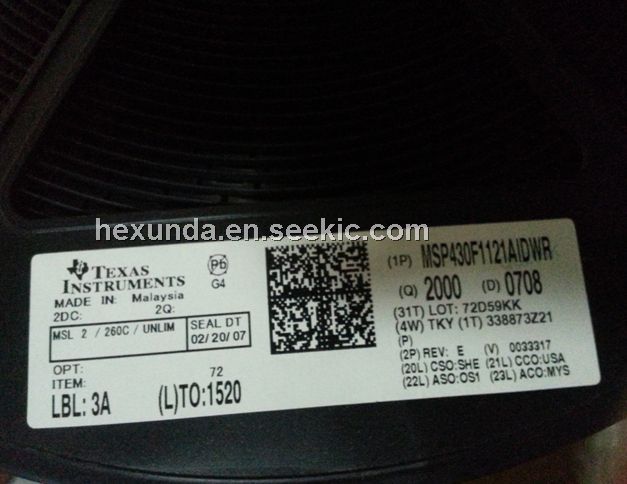

MSP430F1121AIDWR |
Texas Instruments |
16-bit Microcontrollers (MCU) 4kB Flash 256B RAM Comparator |
Data Sheet |
|
|
|||||||||
