Product Summary
The OPA124PB is a precision monolithic FET operational amplifier using a Difet (dielectrical isolation) manufacturing process. Outstanding DC and AC performance characteristics allow the use of the OPA124PB in the most critical instrumentation applications. Compared to the popular OPA111, the OPA124PB gives comparable performance and is available in an 8-pin PDIP and 8-pin SOIC package.
Parametrics
OPA124PB absolute maximum ratings: (1) Supply: ±18VDC; (2) Internal Power Dissipation: 750mW; (3) Differential Input Voltage: ±36VDC; (4) Input Voltage Range: ±18VDC; (5) Storage Temperature Range: -65 to +150°C; (6) Operating Temperature Range: -40 to +125°C; (7) Lead Temperature (soldering, 10s) : +300°C; (8) Output Short Circuit Duration: Continuous; (9) Junction Temperature: +175°C.
Features
OPA124PB features: (1) low noise: 6n√Hz (10kHz) ; (2) low bias current: 1pA max; (3) low offset: 250μV max; (4) low drift: 24μV/°C; (5) high open-loop gain: 120dB min; (6) high common-mode rejection: 100dB min; (7) available in 8-pin plastic DIP and 8-pin SOIC packages.

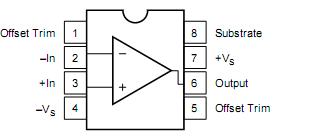

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OPA124PB |
Texas Instruments |
IC OPAMP GP 1.5MHZ SGL LN 8DIP |
Data Sheet |
Negotiable |
|
|||||||||||||
