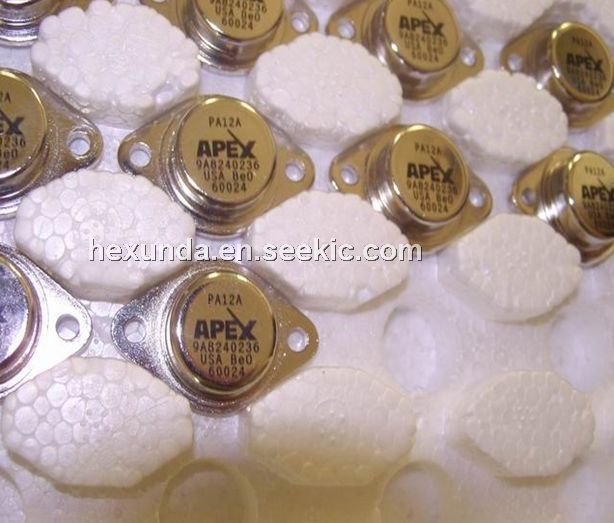

PA12A

power operational amplifier, ±15A, ±50V, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $69.91~80.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	80.00 / Piece
10 ~ 100 :	75.00 / Piece
100 ~ 1000 :	69.91 / Piece

PartNumber:: PA12A

Brand:: Apex Microtechnology Corporation - Apex | Pack: TO | D/C: 00+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Chaney's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-04

From Other Seller

Part Number:PA12A
US $69.91 - 80.00
Quantity:

piece

Product Summary

The PA12A is a state of the art high voltage, very high output current operational amplifier designed to drive resistive, inductive and capacitive loads. The PA12A could be expressed as an output rating of 250W for audio (sine wave) or as 440W if using a single ended DC load. Applications of the PA12A include: Motor, valve and actuator control, magnetic defelection circuits up to 10A, power transducers up to 100kHzm temperature control up to 360W, programmble power supplies up to 90V and aduio amplifiers up to 120W RMS.

Parametrics

PA12A absolute maximum ratings: (1) supply voltage, +VS to -VS: 100V; (2) Output current, within SOA: 15A; (3) Power dissipation, internal: 125w; (4) input voltage, differential: ±Vs, -3V; (5) input voltage, common mode: ±Vs; (6) temperature, pin solder - 10s: 300°C; (7) temperature range, storage: -65°C to +150°C; (8) operational temperature range, case: -55°C to +125°C.

Features

PA12A features: (1) lower thermal resistance: 1.4°C/W; (2) current foldover protection: nwe; (3) high thermal version: PA12H; (4) excellent linearity: class A/B output; (5) wide supply range: ±10V to ±50V; (6) high output current: up to ±15A.
