Product Summary

Product Description:The PE3501 is a high-performance dynamic UltraCMOS? prescaler with a fixed divide ratio of 2.  Its operating frequency
range is 400 MHz to 3.5 GHz. The PE3501 operates on a nominal 3 V supply and draws only 12 mA.  It is packaged in a small 8-lead TSSOP and is ideal for frequency scaling and
microwave PLL synthesis solutions.
The PE3501 is manufactured on Peregrine’s UltraCMOS? process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering the performance
of GaAs with the economy and integration of conventional CMOS.

Parametrics

 Absolute Maximum Ratings:
VDD Supply voltage: 4.0 V
Pin Input Power :15 dBm
TST Storage temperature range :-65 ~ 150 °C
TOP Operating temperature range :-40 ~ 85 °C
VESD ESD voltage (Human Body Model) : 250 V

Features

Features
(1)  High-frequency operation:400 MHz to 3500 MHz ;
(2)  Fixed divide ratio of 2 ;
(3)  Low-power operation:  12 mA typical @ 3 V ;
(4)  Small package: 8-lead TSSOP ;
(5)  Low cost

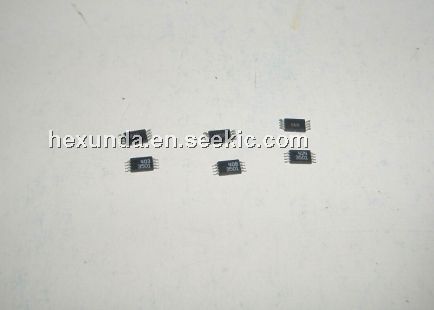

Diagrams
