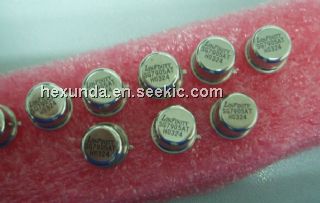

Product Summary
The SG7905AT is a negative regulator offer self-contained,fixed-voltage capability with up to 1.5A of load current. The SG7905AT features a unique band gap reference which allows the G7900A series to be specified with an output voltage tolerance of ±1.5%. The low quiescent drain current of the SG7905AT insures good regulation when this method is used, especially for the SG120 series.
Parametrics
SG7905AT absolute maximum ratings: (1) Output Voltage: -5V, -12V, -15V; (2) Input Voltage: -35V, -40V; (3) Operating Junction Temperature Hermetic (K, T, IG & L - Packages) : 150°C; (4) Storage Temperature Range: -65°C to 150°C; (5) Lead Temperature (Soldering, 10 Seconds) : 300°C .
Features
SG7905AT features: (1) Output voltage set internally to ±1.5% on SG7900A; (2) Output current to 1.5A; (3) Excellent line and load regulation; (4) Foldback current limiting; (5) Thermal overload protection; (6) Voltages available: -5V, -12V, -15V; (7) Contact factory for other voltage options; (8) Available in surface mount package.

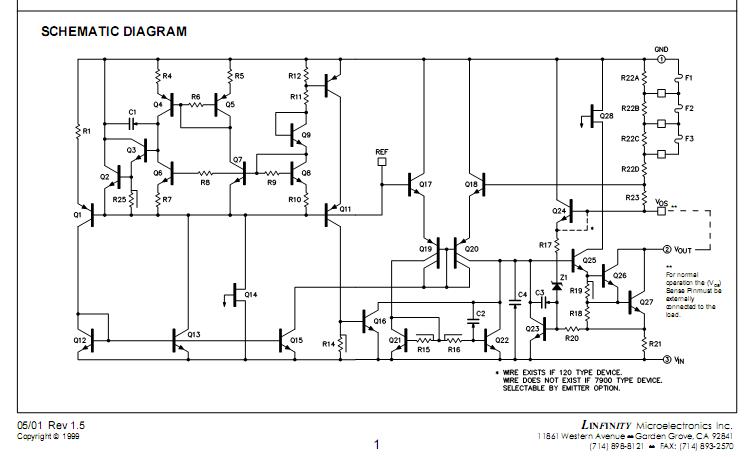

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SG7905AT |
Microsemi-IPG |
IC VOLTAGE REG NEG 5V TO-39 |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
SG7900A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
SG7905AK |
Microsemi-IPG |
IC VOLTAGE REG NEG 5V TO-3 |
Data Sheet |
|
|
||||||||||||||||
|
SG7905AT |
Microsemi-IPG |
IC VOLTAGE REG NEG 5V TO-39 |
Data Sheet |
|
|
||||||||||||||||
 |
SG7905K |
Microsemi-IPG |
IC VOLTAGE REG NEG 5V TO-3 |
Data Sheet |
|
|
||||||||||||||||
 |
SG7905T |
Microsemi-IPG |
IC VOLTAGE REG NEG 5V TO-39 |
Data Sheet |
|
|
||||||||||||||||
 |
SG7912AK |
Microsemi-IPG |
IC VOLTAGE REG NEG 12V TO-3 |
Data Sheet |
|
|
||||||||||||||||
