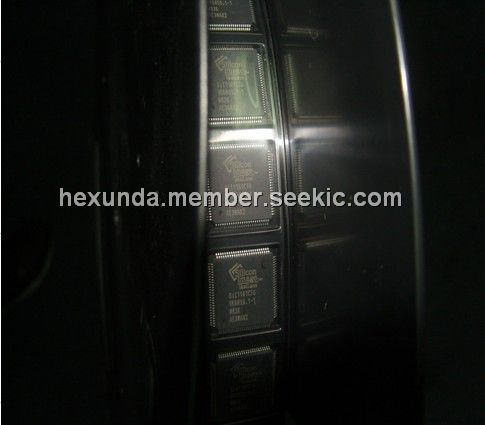

Product Summary
The SII1161CTU receiver uses PanelLink Digital technology to support high-resolution displays up to UXGA (25-165MHz) . The SII1161CTU supports up to true color panels (24 bits per pixel, 16M colors) with both one and two pixels per clock. The SII1161CTU is designed on a scaleable CMOS architecture, ensuring support for future performance enhancements while maintaining the same logical interface.
Parametrics
SII1161CTU absolute maximum ratings: (1) Supply Voltage 3.3V, VCC: -0.3V, 4.0V (2) Input Voltage VI :-0.3V, VCC+ 0.3 V; (3) Output Voltage: -0.3V, VCC+ 0.3V (4) Junction Temperature Tj: 125°C; (5) Storage Temperature Tstg: -65°C to 150 °C.
Features
II1161CTU features: (1)Supports 10 meter cables at UXGA speed ; (2) I2C port for dynamic optimization of settings to compensate for long cables and/or poor quality transmitters; (3) Flexible output drive controls to optimize timings for all possible configurations; (4) 3.3V operation ; (5) Time staggered data output for reduced ground bounce and lower EMI ; (6) Sync Detect feature for DVI Hot Plugging; (7) ESD tolerant to 5kV (HBM) on all pins; (8) Compliant with DVI 1.0; (9) Guaranteed interoperability with DVI-compliant transmitters; (10) Low power standby mode; automatic entry into standby mode with clock detect circuitry ; (11) Pb-free packaging.

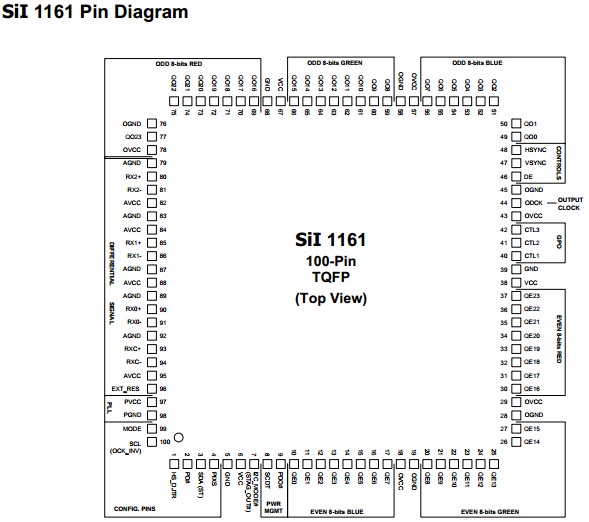

Diagrams
 |
