Product Summary

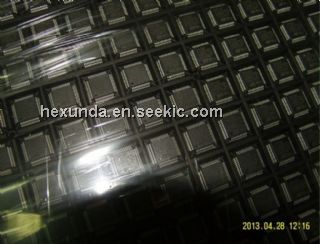

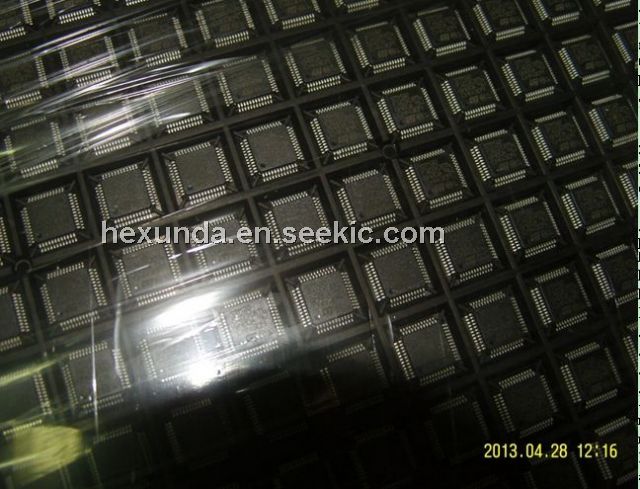

The STM32F103C8T6 is a medium-density performance line ARM-based 32-bit MCU with 64 or 128 KB flash, USB, CAN, 7 timers, 2 ADCs, 9 communication interfaces. The STM32F103C8T6 operates from a 2.0 to 3.6Vpower supply. Applications of the STM32F103C8T6 include: Motor drive and application control, Medical and handheld equipment, PC peripherals gaming and GPS platforms, Industrial applications: PLC, inverters, printers, scanners, Alarm systems, Video intercom, and HVAC.

Parametrics

STM32F103C8T6 absolute maximum ratings: (1) External main supply voltage (including VDDA) VDD-VSS: -0.3 to 4.0V; (2) Input voltage on five volt tolerant pin VIN: VSS -0.3 to +5.5V; (3) (2) Input voltage on any other pin VIN: VSS -0.3 to VDD +0.3V; (4) Variations between different VDD power pins: 50mV; (5) Variations between all the different ground pins |VSSX -VSS| : 50mV.

Features

STM32F103C8T6 features: (1) Core: ARM 32-bit Cortex-M3 CPU; (2) Clock, reset and supply management; (3) Up to 80 fast I/O ports; (4) Up to 9 communication interfaces; (5) CRC calculation unit, 96-bit unique ID; (6) Packages are ECOPACK.

Diagrams

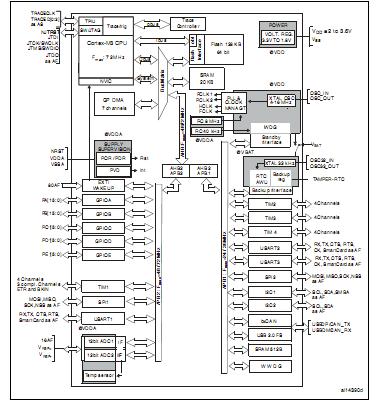

STM32F103C8T6 Block Diagram
