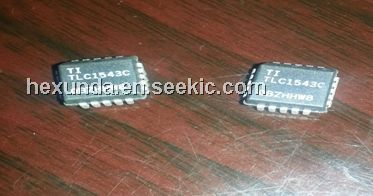

TLC1543CFN

Product Summary

description:The TLC1542C, TLC1542I, TLC1542M, TLC1542Q,TLC1543C, TLC1543I, and TLC1543Q are CMOS 10-bit switched-capacitor successive-approximation
analog-to-digital converters. These devices have three inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), address input
(ADDRESS), and data output (DATA OUT)] that provide a direct 4-wire interface to the serial port of a host processor. These devices allow high-speed data
transfers from the host.In addition to a high-speed A/D converter and versatile control capability, these devices have an on-chip 14-channel multiplexer that can select any one of 11 analog inputs or any one of three internal self-test voltages. The sample-and-hold function is automatic.
At the end of A/D conversion, the end-of-conversion (EOC) output goes high to indicate that conversion is complete. The converter incorporated in the devicesfeatures differential high-impedance reference inputs that facilitate ratiometric conversion, scaling, and isolation of analog circuitry from logic and supply noise. A switched-capacitor design allows low-error conversion over the full operating free-air temperature range

Parametrics

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)?
Supply voltage range, VCC (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 6.5 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.3 V to VCC + 0.3 V
Output voltage range, VO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  –0.3 V to VCC + 0.3 V
Positive reference voltage, Vref+   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  VCC + 0.1 V
Negative reference voltage, Vref–  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.1 V
Peak input current (any input)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±20 mA
Peak total input current (all inputs)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±30 mA
Operating free-air temperature range, TA: TLC1542C,  TLC1543C  . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
TLC1542I, TLC1543I . . . . . . . . . . . . . . . . . . . . . . . .  –40 °C to 85°C
TLC1542Q, TLC1543Q  . . . . . . . . . . . . . . . . . . . . . –40 °C to 125°C
TLC1542M  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55 °C to 125°C
Storage temperature range, Tstg   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . – 65 °C to 150°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260  °C

Features

Feature:
(1)10-Bit Resolution A/D Converter;
(2)11 Analog Input Channels;
(3)Three Built-In Self-Test Modes;
(4)Inherent Sample-and-Hold Function;
(5)Total Unadjusted Error . . . ±1 LSB Max;
(6)On-Chip System Clock;
(7)End-of-Conversion (EOC) Output;
(8)Terminal Compatible With TLC542;
(9)CMOS Technology;
