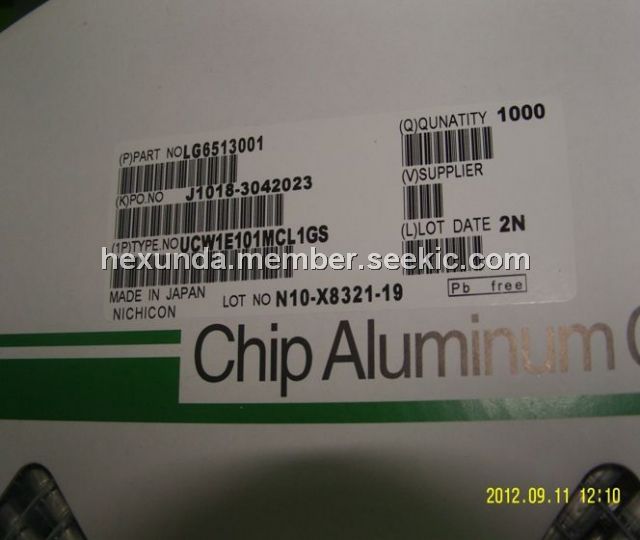

Product Summary

The UCW1E101MCL1GS is an aluminium electrolytic capacitor. The UCW1E101MCL1GS shall be kept on the hot plate maintained at 250°C for 30 seconds.

Parametrics

UCW1E101MCL ratings: (1) Category Temperature Range: –25 ~ +105°C; (2) Rated Voltage Range: 6.3 ~ 50V; (3) Rated Capacitance Range: 10 ~ 470μF; (4) Capacitance Tolerance: ± 20% at 120Hz, 20°C.

Features

UCW1E101MCL features: (1) Chip type with load life of 7000 hours at +105°C, Low impedance temperature range up to +105°C; (2) Applicable to automatic mounting machine using carrier tape. ; (3) Adapted to the RoHS directive(2002/95/EC) .

Diagrams

UCW1E101MCL Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UCW1E101MCL1GS
UCW1E101MCL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 25volts 100uF 105c 6.3X8.7
Data Sheet
0-1: $0.24
1-10: $0.23
10-25: $0.21
25-100: $0.20
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
UCW1A151MCL1GS
UCW1A151MCL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 10volts 150uF 105c 6.3X7
Data Sheet
0-1: $0.16
1-250: $0.16
250-1000: $0.10
1000-3000: $0.10
UCW1C151MCL1GS
UCW1C151MCL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 16volts 150uF 105c 6.3X8.7
Data Sheet
0-1: $0.24
1-10: $0.23
10-25: $0.21
25-100: $0.20
UCW1C220MCL1GS
UCW1C220MCL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 16volts 22uF 105c 5X7
Data Sheet
0-1: $0.18
1-25: $0.16
25-50: $0.14
50-100: $0.12
UCW1C221MCL1GS
UCW1C221MCL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 16volts 220uF 105c 6.3X8.7
Data Sheet
0-1: $0.24
1-10: $0.23
10-25: $0.21
25-100: $0.20
UCW1E101MCL1GS
UCW1E101MCL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 25volts 100uF 105c 6.3X8.7
Data Sheet
0-1: $0.24
1-10: $0.23
10-25: $0.21
25-100: $0.20
UCW1V221MNL1GS
UCW1V221MNL1GS
Nichicon
Aluminum Electrolytic Capacitors - SMD 35volts 220uF 105c 8X10
Data Sheet
0-1: $0.35
1-500: $0.35
500-1000: $0.19
1000-3000: $0.18
