Product Summary

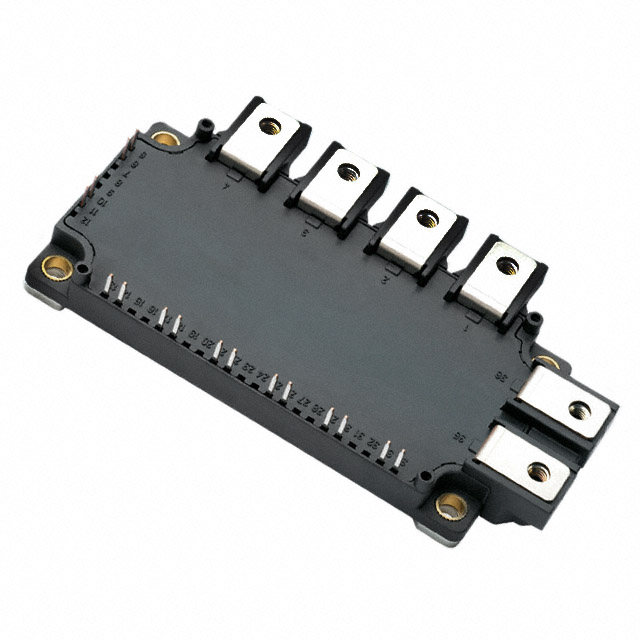

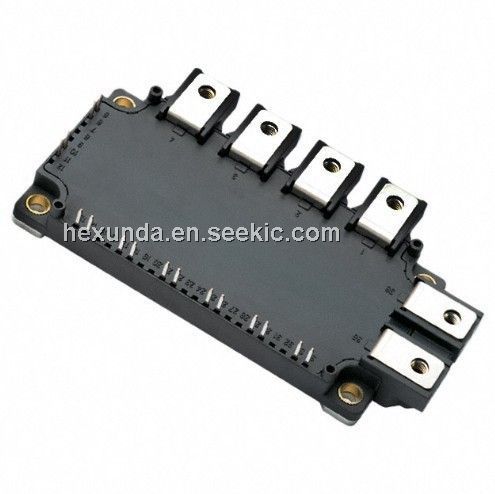

Description:Powerex IGBTMOD? Modules are designed for use in switching applications. Each module consists of six IGBT Transistors in a three phase bridge configuration
and a seventh IGBT with freewheel diode for dynamic braking.
All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal
management
Parametrics
IGBT Module
Transistor Polarity: N Channel
DC Collector Current: 100A
Collector Emitter Voltage Vces: 1.2kV
Power Dissipation Pd: 750W
Operating Temperature Min: -40°C
Operating Temperature Max: 150°C
Recognized under UL1557, File E323585
Features
Features:
(1) Low Drive Power;
(2) Low VCE(sat);
(3) Discrete Super-Fast Recovery Free-Wheel Diode;
(4) Isolated Baseplate for Easy Heat Sinking
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100RX-24S |
|
IGBT MOD 7PAC 1200V 100A NX SER |
Data Sheet |
|
|
||||||||||||||||
