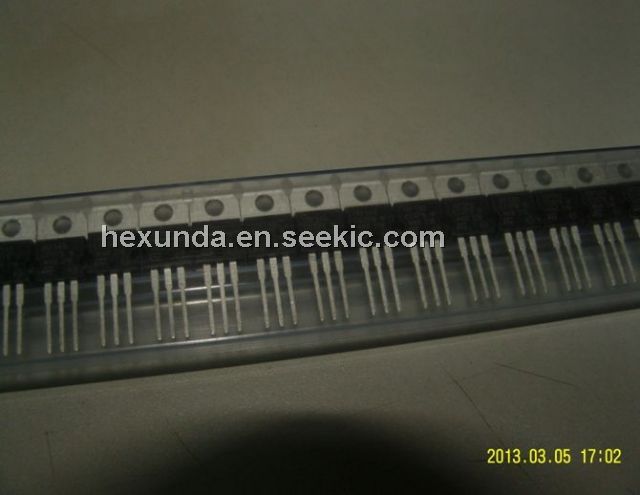

Product Summary

DESCRIPTION
This MOSFET series realized with STMicroelectronics
unique STripFET process has specifically been designed
to minimize input capacitance and gate charge. It is
therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for
Telecom and Computer applications. It is also intended
for any applications with low gate drive requirements

Parametrics

ABSOLUTE MAXIMUM RATINGS:
VDS Drain-source Voltage (VGS = 0) :100 V
VDGR Drain-gate Voltage (RGS = 20 kΩ): 100 V
VGS Gate- source Voltage :± 20 V
ID Drain Current (continuous) at TC = 25°C : 22 A
ID Drain Current (continuous) at TC = 100°C : 15 A
IDM(?) Drain Current (pulsed) : 88 A
Ptot Total Dissipation at TC = 25°C : 85 W
Derating Factor :0.57 W/°C
dv/dt (1) Peak Diode Recovery voltage slope : 9 V/ns
EAS (2) Single Pulse Avalanche Energy : 220 mJ
Tstg Storage Temperature: -55 to 175 °C
Tj Max. Operating Junction Temperatur :-55 to 175 °C

Features

 TYPICAL RDS(on) = 0.055Ω
 EXCEPTIONAL dv/dt CAPABILITY
 100% AVALANCHE TESTED
 LOW GATE CHARGE
 APPLICATION ORIENTED CHARACTERIZATION

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF540
IRF540

Vishay/Siliconix

MOSFET N-Chan 100V 28 Amp

Data Sheet

0-1: $2.82
1-10: $2.51
10-100: $2.21
100-250: $2.08
IRF540N
IRF540N

International Rectifier

MOSFET N-CH 100V 33A TO-220AB

Data Sheet

1-350: $0.80
IRF540N_R4942
IRF540N_R4942

Fairchild Semiconductor

MOSFET TO-220AB N-Ch Power

Data Sheet

Negotiable
IRF540NL
IRF540NL


MOSFET N-CH 100V 33A TO-262

Data Sheet

Negotiable
IRF540NLPBF
IRF540NLPBF

International Rectifier

MOSFET MOSFT 100V 33A 44mOhm 47.3nC

Data Sheet

0-1: $1.51
1-25: $0.97
25-100: $0.70
100-250: $0.66
IRF540NPBF
IRF540NPBF

International Rectifier

MOSFET MOSFT 100V 33A 44mOhm 47.3nC

Data Sheet

0-1: $1.41
1-25: $0.91
25-100: $0.66
100-250: $0.62
IRF540NS
IRF540NS

International Rectifier

MOSFET N-CH 100V 33A D2PAK

Data Sheet

1-300: $0.87
IRF540NSPBF
IRF540NSPBF

International Rectifier

MOSFET

Data Sheet

0-1: $1.73
1-25: $1.12
25-100: $0.74
100-250: $0.73
