Product Summary

Description
The VN750-E is a monolithic device designed in
STMicroelectronics?VIPower?M0-3 technology
intended for driving any kind of load with one side
connected to ground.
Active VCC pin voltage clamp protects the device
against low energy spikes (see ISO7637 transient
compatibility table). Active current limitation
combined with thermal shutdown and automatic
restart help protect the device against overload.
The device detects open load condition in
on-state and off-state. Output shorted to VCC is
detected in the off-state. Device automatically
turns off in case of ground pin disconnection

Parametrics

Absolute maximum ratings:


VCC DC supply voltage :41 V
VCC Reverse DC supply voltage :- 0.3 V
Ignd DC reverse ground pin current :- 200 mA
IOUT DC output current: Internally limited A
IOUT Reverse DC output current :- 6 A
IIN DC input current :+/- 10 mA
ISTAT DC status current: +/- 10 mA
VESD Electrostatic discharge (human body model: R=1.5 KΩ;C=100pF)
- Input :4000 V
- Status:5000 V
- Output:5000 V
- VCC:5000 V

Features

FeatureS:
 ECOPACK?: lead free and RoHS compliant
 Automotive Grade: compliance with AEC guidelines
 CMOS compatible input
 On-state open-load detection
 Off-state open-load detection
 Shorted load protection
 Undervoltage and overvoltage shutdown
 Protection against loss of ground
 Very low standby current
 Reverse battery protection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

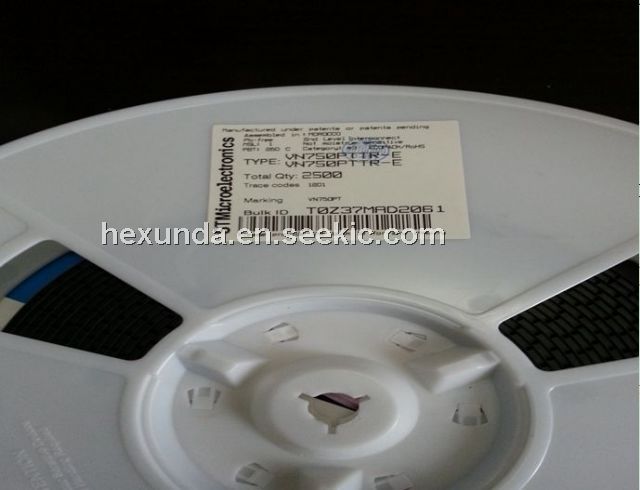

VN750PTTR-E
VN750PTTR-E

STMicroelectronics

Power Driver ICs 36V 6A HIGH SIDE

Data Sheet

0-1800: $0.63
1800-2000: $0.60
2000-2500: $0.60
2500-5000: $0.58
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VN750
VN750

STMicroelectronics

Power Driver ICs 36V 6A High Side

Data Sheet

0-1: $1.65
1-10: $1.42
10-100: $1.16
100-250: $1.05
VN750(012Y)
VN750(012Y)

STMicroelectronics

Power Driver ICs 36V 6A High Side

Data Sheet

0-610: $1.02
610-1000: $0.85
1000-2000: $0.82
2000-5000: $0.79
VN750-12-E
VN750-12-E

STMicroelectronics

Power Driver ICs 36V 6A HIGH SIDE

Data Sheet

0-500: $0.95
500-1000: $0.79
1000-2000: $0.73
2000-5000: $0.70
VN750-B5
VN750-B5

STMicroelectronics

Power Driver ICs 36V 6A High Side

Data Sheet

0-1: $1.66
1-10: $1.33
10-100: $1.18
100-250: $1.07
VN750-B513TR
VN750-B513TR

STMicroelectronics

Power Driver ICs 36V 6A High Side

Data Sheet

0-640: $0.84
640-1000: $0.77
1000-2000: $0.77
2000-5000: $0.74
VN750B5-E
VN750B5-E

STMicroelectronics

Power Driver ICs 36V 6A HIGH SIDE

Data Sheet

0-1: $1.66
1-10: $1.46
10-100: $1.18
100-250: $1.07
