Product Summary

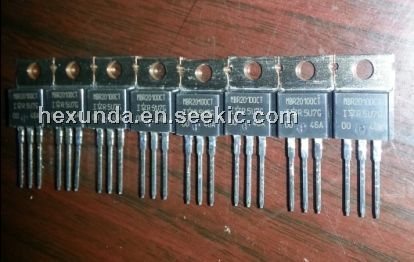

Description:This center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier
technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power
supplies, converters, free-wheeling diodes, and reverse
battery protection
Parametrics
Major Ratings and Characteristic
IF(AV)Rectangular (Per Device) waveform 20 A
IFRM@ TC = 133°C (Per Leg)20 A
VRRM 80/90/100 V
IFSM@ tp = 5 μs sine 850 A
VF@ 10 Apk, TJ = 125°C 0.70 V
TJrange - 65 to 150°C
Features
Features
(1)150° C TJ operation;
(2)Center tap TO-220, D2Pak and TO-262 packages;
(3)Low forward voltage drop;
(4)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance;
(5)High frequency operation;
(6)Guard ring for enhanced ruggedness and long term reliability
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBR20100CT |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 20A 100V |
Data Sheet |
|
|
||||||||||||
|
MBR20100CT/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 20 Amp 100 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
|
MBR20100CT-BP |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 100V, 20A |
Data Sheet |
|
|
||||||||||||
|
MBR20100CT-E3/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 20 Amp 100 Volt |
Data Sheet |
|
|
||||||||||||
|
MBR20100CT-1 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 20 Amp 100 Volt Common Cathode |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MBR20100CT-1PBF |
|
DIODE SCHOTTKY 100V 10A TO262 |
Data Sheet |
|
|
||||||||||||
|
MBR20100CTP |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 100V 20A |
Data Sheet |
|
|
||||||||||||
|
MBR20100CT-E3/4W |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 20A Dual Common-Cathode |
Data Sheet |
|
|
||||||||||||
