Product Summary

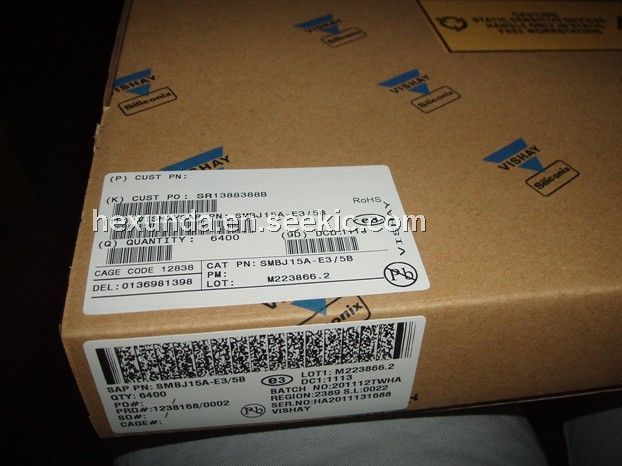

SMBJ Series 15 V Uni Directional Transient Voltage Suppressor Diode-DO-214AA

Parametrics

Maximum ratings and electrical characteristics:
Peak Power Dissipation at Ta=25℃,Tp=1ms ,Pppm minimum 600 Watts
Peak Forward Surge Current,8.3ms single half Sine-Wave Superimposed on rated load(JEDED methos) Ifsm 100 Amps
Operating and storage temperature range Tj,Tstg :-65 to +150℃

Features

Feature:
For surface mounted application
Low profile package
Built-in strain relief
Gladd passivated junction
Excellent clamping capability
Fast response time:typically less than 1.0ps from 0 volts to BV min
Typical Ir less than 1μA above 10V
High temperature soldering:250℃/10seconds at terminals
Plastic material used carries Underwriters Laboratory Flammability Classification 94V-O

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SMBJ15A/54
SMBJ15A/54


TVS J-LEAD 600W 15V UNI-DIR SMD

Data Sheet

0-750: $0.11
SMBJ15A/55
SMBJ15A/55

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 15V 5% Uni

Data Sheet

Negotiable
SMBJ15A/5B
SMBJ15A/5B

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 15V 5% Uni

Data Sheet

Negotiable
SMBJ15A_Q
SMBJ15A_Q

Fairchild Semiconductor

TVS Diodes - Transient Voltage Suppressors 15V 600W SMB Unidirectional

Data Sheet

Negotiable
SMBJ15A-7
SMBJ15A-7

Micro Commercial Components (MCC)

TVS Diodes - Transient Voltage Suppressors 15V 600 Watts

Data Sheet

Negotiable
SMBJ15A-E3/5B
SMBJ15A-E3/5B

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 15V 5% Uni

Data Sheet

0-1: $0.34
1-10: $0.28
10-25: $0.23
25-100: $0.17
SMBJ15A-E3/52
SMBJ15A-E3/52

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 15V 5% Uni

Data Sheet

0-1: $0.10
1-10: $0.08
10-50: $0.07
50-100: $0.06
SMBJ15AHE3/5B
SMBJ15AHE3/5B

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 15V 5% Unidir

Data Sheet

0-1: $0.29
1-10: $0.27
10-25: $0.25
25-100: $0.22
