Product Summary

DESCRIPTION:Using the latest high voltage MESH OVERLAY?process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding
performance. The new patented STrip layout coupled with the Company’s proprietary edge termination structure, makes it suitable in coverters for lighting application

Parametrics

ABSOLUTE MAXIMUM RATINGS:
VDS Drain-source Voltage (VGS = 0) 250 V
VDGR Drain-gate Voltage (RGS = 20 kΩ) 250 V
VGS Gate- source Voltage ± 20 V
ID Drain Current (continuos) at TC = 25°C 22 A
ID Drain Current (continuos) at TC = 100°C 13.9 A
IDM (l) Drain Current (pulsed) 88 A
PTOT Total Dissipation at TC = 25°C 135 W
Derating Factor 1.07 W/°C
VESD(G-S) Gate source ESD(HBM-C=100pF, R=1.5KΩ) 2500 V
dv/dt (1) Peak Diode Recovery voltage slope 5 V/ns
Tstg Storage Temperature –55 to 150 ℃
Tj Max. Operating Junction Temperature  –55 to 150 ℃

Features

Feature:
(1) TYPICAL RDS(on) = 0.13 Ω;
(2) EXTREMELY HIGH dv/dt CAPABILITY;
(3) 100% AVALANCHE TESTED

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

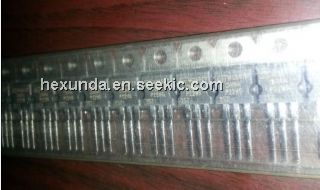

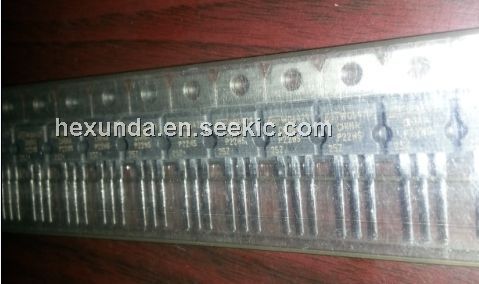

STP22NS25Z
STP22NS25Z
STMicroelectronics
MOSFET N-Ch 250 Volt 22 Amp
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STP20NM60
STP20NM60
STMicroelectronics
MOSFET N-Ch 600 Volt 20 Amp
Data Sheet
0-1: $3.40
1-10: $2.83
10-100: $2.49
100-250: $2.14
STP20NM60FD
STP20NM60FD
STMicroelectronics
MOSFET N-Ch 600 Volt 20 Amp
Data Sheet
0-1: $3.49
1-10: $2.90
10-100: $2.52
100-250: $2.32
STP20NK50Z
STP20NK50Z
STMicroelectronics
MOSFET N-Ch 500 Volt 17 Amp Zener SuperMESH
Data Sheet
0-1: $2.70
1-10: $2.27
10-100: $1.94
100-250: $1.75
STP20NM65N
STP20NM65N
STMicroelectronics
MOSFET N-Channel 650V Pwr Mosfet
Data Sheet
0-620: $2.09
620-1000: $1.75
1000-2000: $1.68
STP20NE06
STP20NE06
STMicroelectronics
MOSFET RO 511-STP36NF06
Data Sheet
Negotiable
STP211C-192-E
STP211C-192-E
Seiko Instruments
Printers MECH 58MM 192 DOT
Data Sheet
Negotiable
