Product Summary

DESCRIPTION:Dual center tap Schottky barrier rectifier designed for high frequency Switched Mode Power Supplies and high frequency DC to DC converters.Packaged in TO-220AB this device is intended for use in low voltage, high frequency converters,
free-wheeling and polarity protection applications

Parametrics

ABSOLUTE  RATINGS (limiting values, per diode)
VRRM Repetitive peak reverse voltage 40 V
IF(RMS) RMS forward current 30 A
IF(AV) Average forward current Tc = 140°C Per diode 8 A
δ = 0.5 Per device 16 A
IFSM Surge non repetitive forward current tp = 10 ms sinusoidal 180 A
IRRM Repetitive peak reverse current tp=2 μs  square  F=1kHz 1 A
IRSM Non repetitive peak reverse current tp = 100 μs  square 2 A
Tstg Storage temperature range - 65  to + 150 °C
Tj Maximum operating junction temperature * 150 °C
dV/dt Critical rate of rise of reverse voltage 10000 V/μs

Features

FEATURES AND BENEFITS
(1)LOW FORWARD VOLTAGE DROP FOR LESS POWER DISSIPATION;
(2)NEGLIGIBLE SWITCHING LOSSES ALLOWING HIGH FREQUENCY OPERATION;
(3)AVALANCHE RATED

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

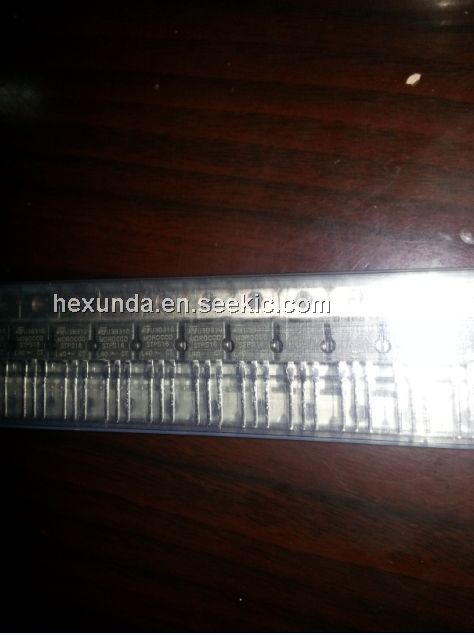

STPS16L40CT
STPS16L40CT
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X8 Amp 40 Volt
Data Sheet
Negotiable
