Product Summary
The BA7805FP-E2 is a regulator available with several fixed output voltage. The BA7805FP-E2 supplies the stable fixes voltage from unstable direct input voltage. The useful output voltage of the lineup of the BA7805FP-E2 is 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V,18V, 20V, 24V with 0.5A / 1A current ability. The BA7805FP-E2 has nearly same electric characteristics as competitor products and cover a wide range of application. Fixed voltage power supply for TV, Audio components, etc are applications of the BA7805FP-E2.
Parametrics
BA7805FP-E2 absolute maximum rating (Ta=25°C) : (1) Power supply voltage Vin: 35V; (2) Output Current: 1A; (3)Operating Temperature Range Topr:- 40～+85°C; (4) Storage Temperature Range Tstg:-55～+150°C; (5) Operating Junction Temperature Range Tj : -40～+150°C.
Features
BA7805FP-E2 features: (1) Built-in over-current protection circuit and thermal shutdown circuit ; (2) High ripple rejection; (3) Available TO220CP-3, TO252-3 package to a wide range application; (4) Compatible replacement to competitor products ; (5) Various voltage lineup (5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V) .

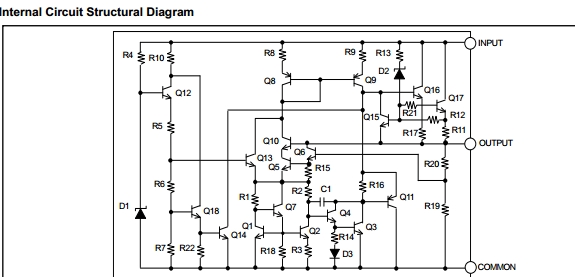

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA7805FP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard STD REGULATOR POS 5V 1A TR |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
BA7805CP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard IC 5V REGULATOR |
Data Sheet |
|
|
||||||||||||||
|
BA7805FP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard STD REGULATOR POS 5V 1A TR |
Data Sheet |
|
|
||||||||||||||
|
BA7806CP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard IC REG 8.5-21 VOUT 6V 1A |
Data Sheet |
|
|
||||||||||||||
|
BA7806FP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard STD REGULATOR POS 6V 1A TR |
Data Sheet |
|
|
||||||||||||||
|
BA7807CP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard IC REG 9.5-22 VOUT 7V 1A |
Data Sheet |
|
|
||||||||||||||
|
BA7807FP-E2 |
ROHM Semiconductor |
Linear Regulators - Standard STD REGULATOR POS 7V 1A TR |
Data Sheet |
|
|
||||||||||||||
