Product Summary
The EL4583AIS-T13 is a Sync Separator, 50% Slice, S-H, filter. The EL4583AIS-T13 extracts timing from video sync in NTSC, PAL, and SECAM systems, and non-standard formats, or from computer graphics operating at higher scan rates. Applications of the EL4583AIS-T13 include: video special effects, video test equipment, video distribution, multimedia, displays, imaging, video data capture and video triggers
Parametrics
EL4583AIS-T13 absolute maximum ratings (TA = 25°C) : (1) VCC Supply: 7V; (2) Storage Temperature: -65°C to +150°C; (3) Pin Voltages: -0.5V to VCC +0.5V; (4) Operating Temperature Range: -40°C to +85°C; (5) Power Dissipation: See Curves; (6) Die Junction Temperature: 150°C.
Features
EL4583AIS-T13 features: (1) NTSC, PAL, and SECAM sync separation; (2) Single supply, +5V operation; (3) Precision 50% slicing; (4) Built-in programmable color burst filter; (5) Decodes non-standard vertical; (6) Horizontal sync output; (7) Sync pulse amplitude output; (8) Low-power CMOS; (9) Detects loss of signal; (10) Resistor programmable scan rate; (11) Few external components; (12) Available in 16-pin SO (0.150 inch ) packages; (13) Pb-Free plus anneal available (RoHS compliant) .

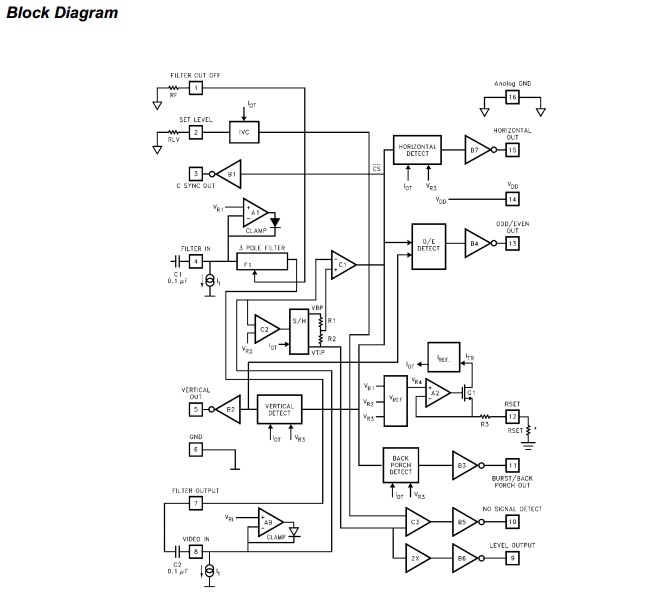

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EL4583AIS-T13 |
IC SYNC SEPARATOR S-H 50% 16SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
EL4501 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
EL4501C - Preliminary |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
EL4501IU |
IC VIDEO FRONT END AMP 24-QSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
EL4501IU-T13 |
IC VIDEO FRONT END AMP 24-QSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
EL4501IU-T7 |
IC VIDEO FRONT END AMP 24-QSOP |
Data Sheet |
Negotiable |
|
||||||||||||||
EL4501IUZ |
Intersil |
Video ICs EL4501IUZVIDEO FRONT END |
Data Sheet |
|
|
