Product Summary

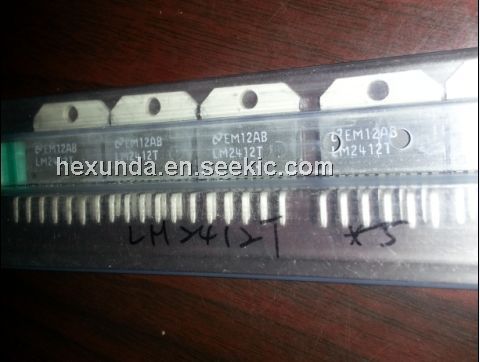

General Description:The LM2412 is an integrated high voltage CRT driver circuit designed for use in high resolution color monitor applications. The IC contains three high input impedance, wide
band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -14 and can drive CRT capacitive loads as well as resistive loads presented by other applications, limited only by the package’s
power dissipation. The LM2412 is a low power alternative of the LM2402
The IC is packaged in an industry standard 11 lead TO-220 molded plastic power package. See thermal considerations
section for heat sinking requirements
Parametrics
Absolute Maximum Ratings (Notes 1, 2)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage, VCC +90V
Bias Voltage, VBB +16V
Input Voltage, VIN 0V to 6V
Storage Temperature Range, TSTG -65℃ to +150℃
Lead Temperature (Soldering, <10 sec.) 300℃
ESD Tolerance
Human Body Model 2 kV
Machine Model 250V
Features
Features
(1) Rise/fall times typically 2.8 ns with 8 pF load at 40 VPP; (2) Lower power than LM2402 with the same bandwidth;
(3) Well matched with LM2202 video preamps;
(4) Output swing capability: 50 VPP for VCC= 80V;
(5) 1V to 5V input range;
(6) Stable with 0-20 pF capacitive loads and inductive peaking networks;
(7) Convenient TO-220 staggered lead package style;
(8) Standard LM240X family pinout which is designed for easy PCB layout
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2412T/NOPB |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
