Product Summary
General Description:The LM2465 is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC
contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to -20 and can drive CRT
capacitive loads as well as resistive loads present in other
applications, limited only by the package’s power dissipation.The IC is packaged in an industry standard 9-lead TO-220 molded plastic package
Parametrics
Absolute Maximum Ratings (Notes 1, 3)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage (VCC) +90V
Bias Voltage (VBB) +16V
Input Voltage (VIN) 0V to 4.5V
Storage Temperature Range (TSTG) -65℃ to +150℃
Lead Temperature
(Soldering, <10 sec.) 300℃
ESD Tolerance, Human Body Model 2 kV
Machine Model 250V
Features
Features
(1) Higher gain to match LM126X CMOS preamplifiers;
(2) 0V to 3.75V input range;
(3) Stable with 0–20 pF capacitive loads and inductive peaking networks;
(4) Same pinout as LM2467/8/9, maintaining the standard LM243X Family pinout for easy PCB layout;
(5) Convenient TO-220 staggered lead package style
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

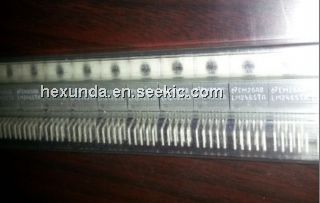

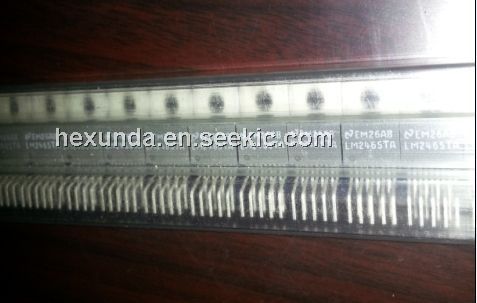

 LM2465TA/NOPB |
|
IC CRT DRIVER TRPL 5.5NS TO220-9 |
Data Sheet |
Negotiable |
|
||||
