Product Summary

Mechanical Data

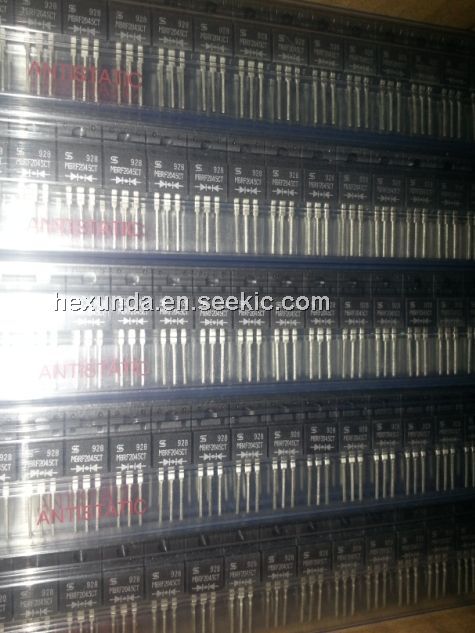

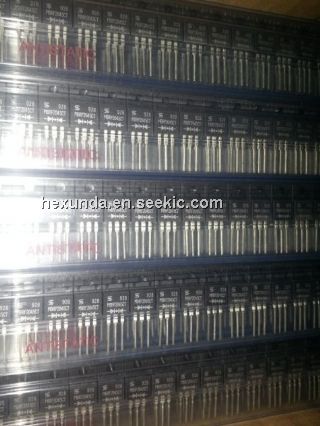

 Cases: ITO-220AB molded plastic
 Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026
 Polarity: As marked
 Mounting position: Any
 Mounting torque: 5 in. - lbs. max
 Weight:  0.08 ounce, 2.24 grams

Parametrics

Maximum Ratings and Electrical Characteristics:
Maximum Average Forward Rectified Current at TC=135℃ Total deviceI(AV) ：20 A
Maximum Average Forward Rectified Per Leg I(AV)：10 A
Peak Repetitive Forward Current Per leg (Rated VR, Square Wave, 20KHz) at Tc=135℃ IFRM ：20 A
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method )  IFSM ：150 A
Peak Repetitive Reverse Surge Current (Note 1)  IRRM 1.0 0.5A

Features

Features
 Plastic material used carries Underwriters Laboratory Classifications 94V-0
 Metal silicon junction, majority carrier conduction
 Low power loss, high efficiency
 High current capability, low forward voltage drop
 High surge capability
 For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
 Guardring for overvoltage protection
 High temperature soldering guaranteed: 260℃/10 seconds,0.25”(6.35mm)from case

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBRF2045CT
MBRF2045CT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 20 Amp 45 Volt Dual
Data Sheet
0-2000: $0.42
2000-4000: $0.37
4000-6000: $0.33
MBRF2045CT-E3/45
MBRF2045CT-E3/45
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 20A Dual Common-Cathode
Data Sheet
0-1: $1.11
1-10: $1.00
10-100: $0.84
100-250: $0.75
MBRF2045CTG
MBRF2045CTG
ON Semiconductor
Schottky (Diodes & Rectifiers) 20A 45V RECTIFIER
Data Sheet
0-1: $0.41
1-25: $0.40
25-100: $0.39
100-250: $0.38
MBRF2045CTHE3/45
MBRF2045CTHE3/45
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 45 Volt 20A Dual Common-Cathode
Data Sheet
0-430: $0.75
430-500: $0.66
500-1000: $0.57
1000-2000: $0.49
