Product Summary

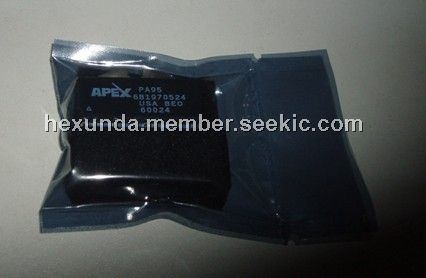

(1)The PA95 is a high voltage, MOSFET operational amplifier;
(2)designed as a low cost solution for driving continuous output;
(3)currents up to 100mA and pulse currents up to 200mA into;
(4)capacitive loads. The safe operating area (SOA) has no;
(5)second breakdown limitations and can be observed for all load;
(6)types by choosing an appropriate current limiting resistor.
(7)MOSFET output stage is biased AB for linear operation.
(8)External compensation provides flexibility in choosing bandwidth and slew rate for the application. APEX Power SIP04;
(9)package uses a minimum of board space allowing for high;
(10)density circuit boards.
Parametrics
SUPPLY VOLTAGE, +VS to S 900V OUTPUT CURRENT, source, sink 200mA, within SOA POWER DISSIPATION, continuous @ TC = 25C 30W.
INPUT VOLTAGE, differential 20V ,INPUT VOLTAGE, common mode 3 VS.
TEMPERATURE, pin solder - 10s max 220C TEMPERATURE, junction 2 150C.
TEMPERATURE, storage 閳?5 to +150C OPERATING TEMPERATURE RANGE, case 5 to +125.
Features
(1)HIGH OUTPUT CURRENT 100mA ,
(2)LOW QUIESCENT CURRENT 1.6mA ,
(3)HIGH VOLTAGE 900V (450V),
(4)PROGRAMMABLE CURRENT LIMI.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PA95 |
Cirrus Logic |
Operational Amplifiers - Op Amps Linear Op-Amp 900V 100mA |
Data Sheet |
Negotiable |
|
||||||||||||
 |
PA951 |
Carling Technologies |
Pushbutton Switches SP ON-OFF .250 Q.C. |
Data Sheet |
|
|
||||||||||||
|
PA955 |
Carling Technologies |
Pushbutton Switches PB SWITCH ON-OFF |
Data Sheet |
|
|
||||||||||||
|
PA95EC |
Cirrus Logic |
Operational Amplifiers - Op Amps Linear Op-Amp 900V 100mA |
Data Sheet |
Negotiable |
|
||||||||||||
