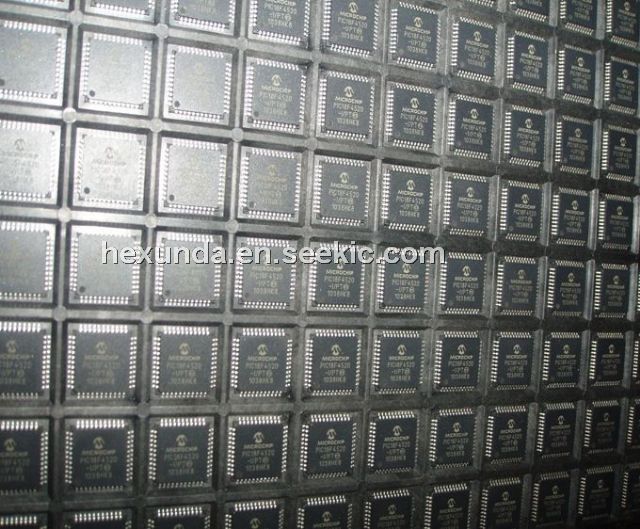

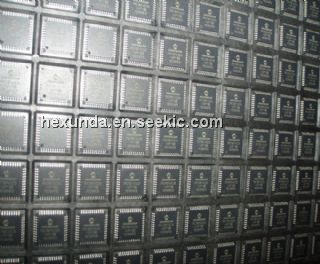

PIC18F4520-I/PT

flash microcontroller, +13.25V, 300mA, TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.10 / Piece
10 ~ 100 :	2.00 / Piece
100 ~ 1000 :	1.80 / Piece

PartNumber:: PIC18F4520-I/PT

Brand:: Microchip Technology - Microchip | Pack: TQFP | D/C: 10+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Chaney's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-02

From Other Seller

Part Number:PIC18F4520-I/PT
US $1.80 - 2.10
PIC18F4520-I/PT

US $3.38 - 9.67 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC18F4520-I/PT is a 44-Pin Enhanced Flash Microcontrollers with 10-Bit A/D and nanoWatt Technologr. And the incorporates the standard set of 75 PIC18 core instructions, as well as an extended set of 8 new instructions, for the optimization of code that is recursive or that utilizes a software stack.

Parametrics

PIC18F4520-I/PT absolute maximum ratings: (1) Ambient temperature under bias: -40°C to +125°C; (2) Storage temperature: -65°C to +150°C; (3) Voltage on any pin with respect to VSS (except VDD and MCLR) : -0.3V to (VDD +0.3V) ; (4) Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5) Voltage on MCLR with respect to VSS: 0V to +13.25V; (6) Total power dissipation: 1.0W; (7) Maximum current out of VSS pin: 300mA; (8) Maximum current into VDD pin: 250mA; (9) Input clamp current, IIK (VI < 0 or VI > VDD) : ±20mA; (10) Output clamp current, IOK (VO < 0 or VO > VDD) : ±20mA; (11) Maximum output current sunk by any I/O pin: 25mA; (12) Maximum output current sourced by any I/O pin: 25mA; (13) Maximum current sunk by all ports: 200mA; (14) Maximum current sourced by all ports .: 200mA.

Features

PIC18F4520-I/PT features: (1) Timer1 Oscillator: 900 nA, 32 kHz, 2V； (2) Four Crystal modes, up to 40 MHz; (3) Allows for safe shutdown if peripheral clock stops; (4) High-Current Sink/Source 25 mA/25 mA; (5) Master Synchronous Serial Port (MSSP) module; (6) 10-Bit, up to 13-Channel Analog-to-Digital (A/D; (7) Dual Analog Comparators with Input Multiplexing; (8) rogrammable Brown-out Reset (BOR) with Software Enable Option.
