Product Summary

The ST7FLITE29F2M6TR is a flash memory. The ST7FLITE29F2M6TR is based on a common industry-standard 8-bit core, featuring an enhanced instruction set. The ST7FLITE29F2M6TR features FLASH memory with byte-by-byte In-Circuit Programming (ICP) and In Application Programming (IAP) capability. Under software control, the ST7FLITE29F2M6TR device can be placed in WAIT, SLOW, or HALT mode, reducing power consumption when the application is inidle or standby state.

Parametrics

ST7FLITE29F2M6TR absolute maximum ratings: (1) Electro-static discharge voltage (Human Body Model) TA=+25°C, VESD(HBM) : 4000V; (2) Electro-static discharge voltage (Machine Model) VESD (MM) , TA=+25°C: TBD.

Features

ST7FLITE29F2M6TR features: (1) Program memory bytes: 8K; (2) RAM (stack) bytes: 384 (128) ; (3) Data EEPROM bytes: 256; (4) Peripherals Lite Timer with Watchdog, Autoreload Timer, SPI, 10-bit ADC with Op-Amp; (5) Lite Timer with Watchdog, Autoreload Timer with 32-MHz input clock, SPI, 10-bit ADC with Op-Amp Operating Supply: 2.4V to 5.5V; (6)CPU Frequency Up to 8MHz (w/ext OSC up to 16MHz) ; (7) Operating Temperature: -40°C to +85°C; (8) Packages SO20 300 inch, DIP20.

Diagrams

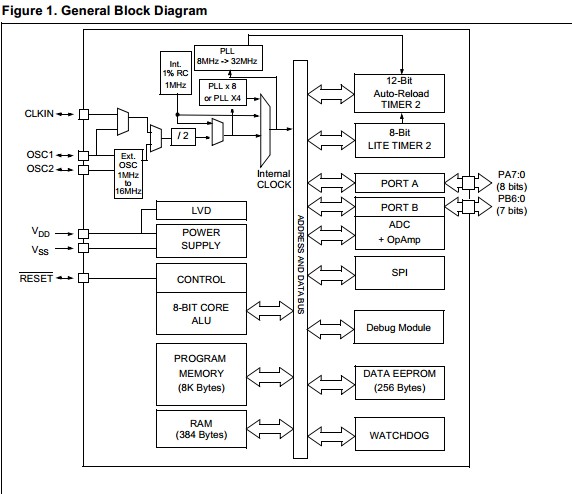

ST7FLITE29F2M6TR Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ST7FLITE29F2M6TR
ST7FLITE29F2M6TR
STMicroelectronics
8-bit Microcontrollers (MCU) 8B MCU SNGL VLTG FLASH MEMORY
Data Sheet
0-625: $1.75
625-1000: $1.50
1000-2000: $1.44
2000-5000: $1.37
