Product Summary
description:The TLC2272 and TLC2274 are dual and quadruple operational amplifiers from Texas Instruments. Both devices exhibit rail-to-rail
output performance for increased dynamic range in single- or split-supply applications. The TLC227x family offers 2 MHz of bandwidth and
3 V/μs of slew rate for higher speed applications. These devices offer comparable ac performance while having better noise, input offset voltage, and
power dissipation than existing CMOS operational amplifiers. The TLC227x has a noise voltage of 9 nV/√Hz, two times lower than
competitive solutions.
Parametrics
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)?
Supply voltage, VDD+ (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 V
Supply voltage, VDD- (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-8 V
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . ±16 V
Input voltage range, VI (any input, see Note 1) . . . . . . . . . . . . . . . . . VDD_- 0.3 V to VDD+
Input current, II(any input) . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Total current into VDD+ . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Total current out of VDD- . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Duration of short-circuit current at (or below) 25°C (see Note 3) . . . . . . . . . . . . . . . .unlimited
Package thermal impedance, θJA (see Notes 4 and 5): D package (8 pin) . . . . . . . . . . . . . . . . . . . . 97.1 °C/W
D package (14 pin) . . . . . . . . . . . . . . . . . . . 86.2°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . 79.7 °C/W
P package . . . . . . . . . . . . . . . . . . . . . . . . . . 84.6 °C/W
PW package (8 pin) . . . . . . . . . . . . . . . . . . . 149 °C/W
PW package (14 pin) . . . . . . . . . . . . . . . . . . 113 °C/W
Package thermal impedance, θJC (see Notes 4 and 5): FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.6°C/W
J package . . . . . . . . . . . . . . . . . . . . . . . . . . 15.1°C/W
U package . . . . . . . . . . . . . . . . . . . . . . . . . . 14.7 °C/W
Operating free-air temperature range, TA: C suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 °C to 70°C
I, Q suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to 125°C
M suffix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55 °C to 125°C
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65 °C to 150°C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, P or PW package. . . . . . . . . . 260 °C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: J or U package . . . . . . . . . . . . . . . . . 300 °C
Features
Feature:
(1) Output Swing Includes Both Supply Rails;
(2) Low Noise . . . 9 nV/√Hz Typ at f = 1 kHz;(3) Low Input Bias Current . . . 1 pA Typ;
(4) Fully Specified for Both Single-Supply and Split-Supply Operation;
(5) Common-Mode Input Voltage Range Includes Negative Rail;
(6) High-Gain Bandwidth . . . 2.2 MHz Typ;
(7) High Slew Rate . . . 3.6 V/μs Typ;
(8) Low Input Offset Voltage 950 μV Max at TA = 25°C;
(9) Macromodel Included;
(10) Performance Upgrades for the TS272,TS274, TLC272, and TLC274;
(11) Available in Q-Temp Automotive HighRel Automotive Applications Configuration Control / Print Support Qualification to Automotive Standards
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

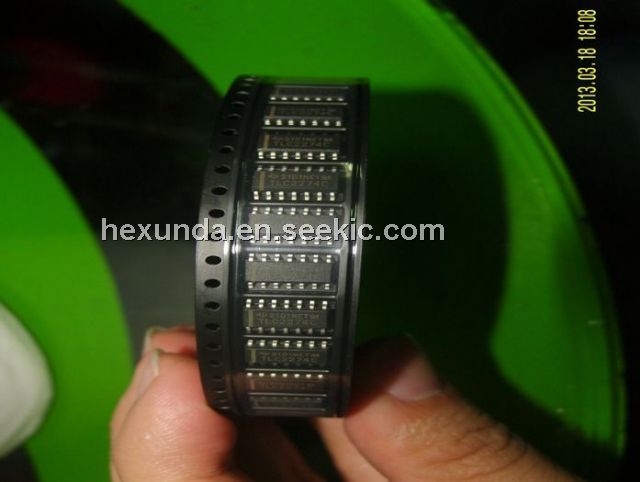

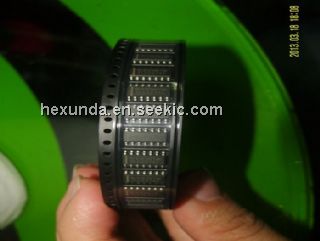

TLC2274CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low Noise R/R |
Data Sheet |
|
|
|||||||||||||
TLC2274CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Lo-Noise R-To-R Op Amp |
Data Sheet |
|
|
