Product Summary

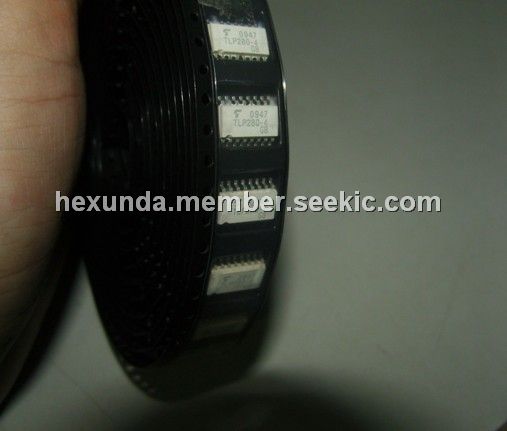

TLP280-4 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers. TLP280-4 consist of photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.
Parametrics
TLP280-4 absolute maximum ratings: (1) Forward currentIF(RMS) : ±50mA; (2) Forward current derating ΔIF /°C : -0.7A (Ta ≥ 53°C) , -0.5A (Ta ≥ 25°C) ; (3) Pulse forward current IFP: ±1A (100μs pulse, 100pps) ; (4) Junction temperature Tj: 125°C; (5) Collector-emitter voltage VCEO: 80V; (6) Emitter-collector voltage VCEO: 7V; (7) Collector current: 50mA; (8) Storage temperature range Tstg: -55 to 125°C ; Operating temperature range Topr: -55 to 100°C ; (9) Lead soldering temperature Tsol: 260 (10s) ; (10) Total package power dissipation (1 circuit) PT: 200mW, 170mW.
Features
TLP280-4 features:Programmable Controllers ,AC/DC-Input Module ; (2) PC Card Modem (PCMCIA) .

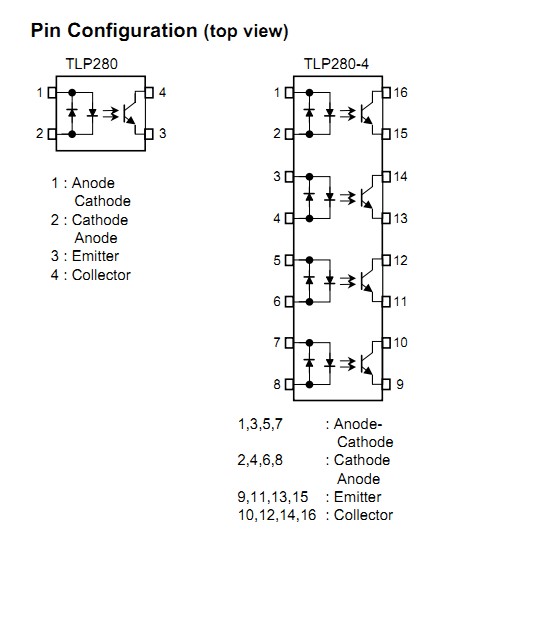

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP280-4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
TLP280-4(GB) |
|
PHOTOCOUP QUAD TRANS OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB,F) |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms AC input |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB,J,F) |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms AC input |
Data Sheet |
|
|
||||||||||||||||||
|
TLP280-4(GB-TP) |
|
PHOTOCOUP QUAD TRANS OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB-TP,F) |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP280-4(GB-TP,J,F |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
|
|
||||||||||||||||||
|
TLP280-4(GB-TP,J,F) |
|
PHOTOCOUP QUAD TRANS OUT 16-SOP |
Data Sheet |
|
|
||||||||||||||||||
