Product Summary
General Description:The Virtex?-6 family provides the newest, most advanced features in the FPGA market. Virtex-6 FPGAs are the programmable silicon
foundation for Targeted Design Platforms that deliver integrated software and hardware components to enable designers to focus on
innovation as soon as their development cycle begins. Using the third-generation ASMBL? (Advanced Silicon Modular Block) columnbased architecture, the Virtex-6 family contains multiple distinct sub-families. This overview covers the devices in the LXT, SXT, and HXT
sub-families. Each sub-family contains a different ratio of features to most efficiently address the needs of a wide variety of advanced logic
designs. In addition to the high-performance logic fabric, Virtex-6 FPGAs contain many built-in system-level blocks. These features allow
logic designers to build the highest levels of performance and functionality into their FPGA-based systems. Built on a 40 nm state-of-theart copper process technology, Virtex-6 FPGAs are a programmable alternative to custom ASIC technology. Virtex-6 FPGAs offer the best
solution for addressing the needs of high-performance logic designers, high-performance DSP designers, and high-performance
embedded systems designers with unprecedented logic, DSP, connectivity, and soft microprocessor capabilities
Parametrics
Device Logic Units 74496
Typical Operating Supply Voltage 1 V
Maximum Number of User I/Os 360
RAM Bits 5750784
Operating Temperature -40 to 100 °C
Speed Grade 1
Features
Summary of Virtex-6 FPGA Features
Three sub-families
Compatibility across sub-families
Advanced, high-performance FPGA Logic
Powerful mixed-mode clock managers (MMCM)
36-Kb block RAM/FIFOs
High-performance parallel SelectIO? technology
Advanced DSP48E1 slices
Flexible configuration options
System Monitor capability on all devices
Integrated interface blocks for PCI Express? designs
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

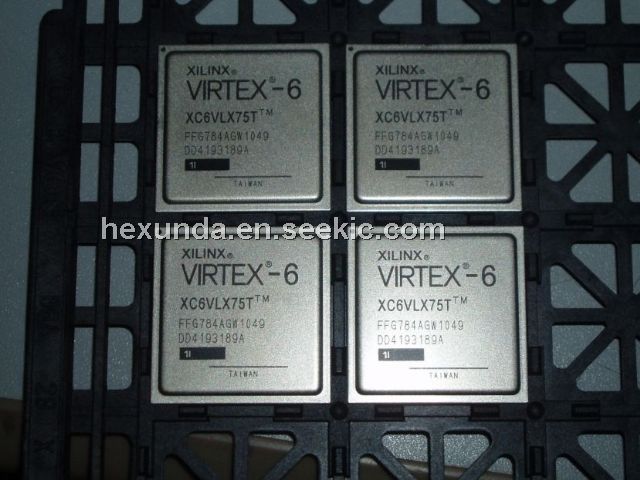

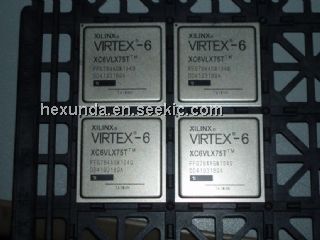

XC6VLX75T-1FFG784I |
IC FPGA VIRTEX 6 74K 784FFGBGA |
Data Sheet |
|
|
||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
XC6VCX130T-1FFG1156C |
IC FPGA VIRTEX 6 128K 1156FFGBGA |
Data Sheet |
|
|
||||||||
XC6VCX130T-1FFG1156I |
IC FPGA VIRTEX 6 128K 1156FFGBGA |
Data Sheet |
|
|
||||||||
XC6VCX130T-1FFG484C |
IC FPGA VIRTEX 6 128K 484FFGBGA |
Data Sheet |
|
|
||||||||
XC6VCX130T-1FFG484I |
IC FPGA VIRTEX 6 128K 484FFGBGA |
Data Sheet |
|
|
||||||||
XC6VCX130T-1FFG784C |
IC FPGA VIRTEX 6 128K 784FFGBGA |
Data Sheet |
|
|
||||||||
XC6VCX130T-1FFG784I |
IC FPGA VIRTEX 6 128K 784FFGBGA |
Data Sheet |
|
|
